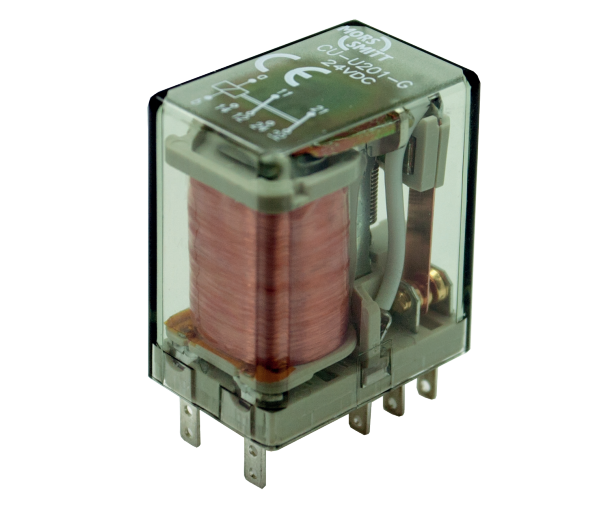

CU-U200-U relay - High contact life

Informatie

Description

Miniature railway relay with one double make, double break contact. High maximum contact current and long electrical life.

Relay for plug-in mounting (CU version) or for PCB mounting (CP version).

The construction of the relay and choice of materials makes the CU/CP-U200-U relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

With a very compact design and a wide range of sockets, the CU/CP-U200-U relay is an easy and flexible solution to use.


Application

These relay series are designed for rolling stock applications where available space is limited and a high contact current is used or long electrical life is required.


Features

  • Miniature plug-in / PCB relay
  • 1 double make/double break contact
  • High maximum current
  • Long electrical life
  • Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
  • Wide range sockets
  • Transparent cover
  • Optional positive mechanical keying relay to socket

Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Used in safety critical applications
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • IEC 60077 Electrical equipment for rolling stock in railway applications
  • IEC 60947 Low voltage switch gear and control gear
  • IEC 61373 Rolling stock equipment - Shock and vibration test
  • EN 50121 Electromagnetic compatibility for railway applications
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • IEC 60529 European standard describes the protection class (IP-code)
  • NF F 62-002 On-off contact relays and fixed connections
