Direct schakelende relais

Nieuw product

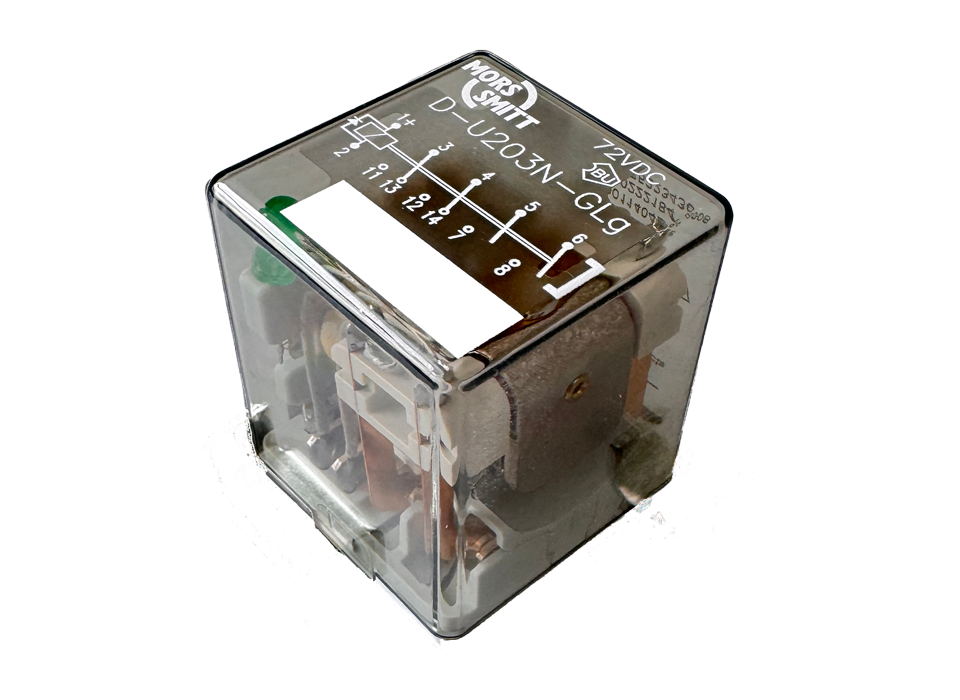

D-U200N Plug-in spoorwegrelais met 4 C / O-contact…

• Ultracompact, licht van gewicht
• 4 C / O-contacten, zelfreinigend
• Geïntegreerde back EMF-onderdrukkingsdiode
• Magnetische uitblaas van de vlamboog zorgt voor een lange levensduur van het contact
• Minimale schakelstroom 1 mA
• Maximale continue stroom 10 A
• Bewezen betrouwbaar
• Breed temperatuurbereik -50 ⁰C ... + 85 ⁰C
• Mechanische levensduur> 50 miljoen bewerkingen
• Elektrische levensduur b.v. > 10 miljoen bewerkingen op 0,5 A, 24 VDC
• Gegevensmatrix met serienummer voor traceerbaarheid
• Geïntegreerde snaplock, geen externe borgclip nodig
• Transparante afdekking voor visuele inspectie
• Vele opties en stopcontacten beschikbaar

Download datasheet

Bekijk details

D-U200 instantaneous relay with 4 contacts

• Compact plug-in design
• Instantaneous, 4 CO contacts
• Standard back EMF diode
• Magnetic arc blow-out.
• Flat, square silver plated relay pins for excellent socket connection
• Wide range sockets
• Integrated snap lock
• Transparent cover
• High DC breaking capacity
• Flexibility by many options
• Optional positive mechanical keying relay to socket

Download datasheet

Bekijk details

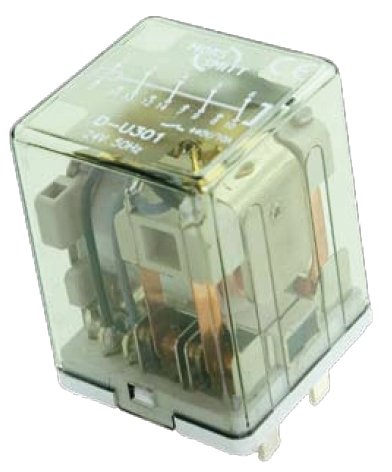

D-U300 relais - Plug-in, 4-polig, AC-spoel

• Compact plug-in ontwerp
• AC spoel
• Onmiddellijk, 4 C / O-contacten
• Magnetische uitbarsting van de boog
• Platte, vierkant verzilverde relaispennen voor uitstekende aansluiting
• Breed scala aan voeten
• Geïntegreerde klikvergrendeling
• Transparante hoes
• Hoge DC-breekcapaciteit
• Optioneel positief mechanisch sleutelrelais naar socket
• Flexibiliteit door vele opties

Download datasheet

Bekijk details

Nieuw product

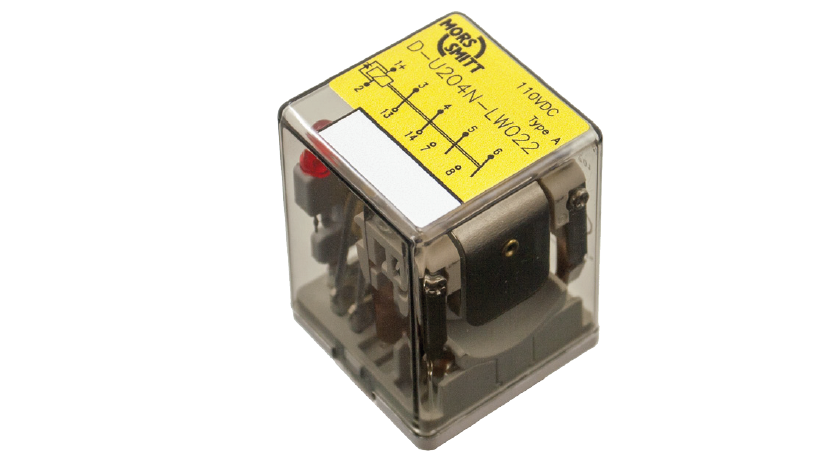

D-U200N-W Plug-in railway relay with 4 contacts

• Ultracompact veiligheidsrelais
• 4 Weld-no-transfer contacten, zelfreinigend
• Geïntegreerde back EMF-onderdrukkingsdiode
• Magnetische uitblaas van de vlamboog zorgt voor een lange levensduur van het contact
• Minimale schakelstroom 1 mA
• Maximale continue stroom 10 A
• Bewezen betrouwbaar
• Breed temperatuurbereik -50 ⁰C ... + 85 ⁰C
• Mechanische levensduur> 50 miljoen bewerkingen
• Elektrische levensduur b.v. > 10 miljoen bewerkingen op 0,5 A, 24 VDC
• Gegevensmatrix met serienummer voor traceerbaarheid
• Geïntegreerde snaplock, geen externe borgclip nodig
• Transparante afdekking voor visuele inspectie
• Vele opties en stopcontacten beschikbaar

Download datasheet

Bekijk details

D-U200-W safety critical relay with 4 contacts

• Compact plug-in design
• Instantaneous, 4 NO/NC contacts
• Standard back EMF diode
• Magnetic arc blow-out.
• Flat, square silver plated relay pins for excellent socket connection
• Wide range sockets
• Integrated snap lock
• Transparent cover
• High DC breaking capacity
• Flexibility by many options
• Positive mechanical keying relay to socket
• Weld-no-transfer (WNT) contacts

Download datasheet

Bekijk details

Nieuw product

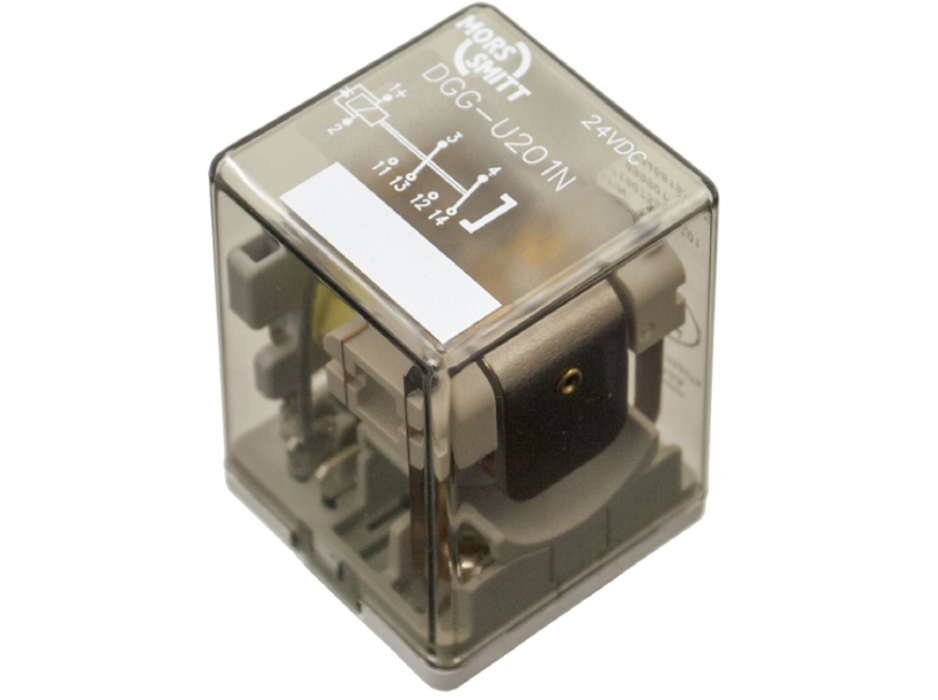

DGG-U200N Plug-in railway relay with 2 C/O contact…

• Ultracompact, licht van gewicht
• 2 C / O-contacten, zelfreinigend
• Groot spanningsbereik 40% -125% Unom
• Geïntegreerde back EMF-onderdrukkingsdiode
• Magnetische uitblaas van de vlamboog zorgt voor een lange levensduur van het contact
• Minimale schakelstroom 1 mA
• Maximale continue stroom 10 A
• Bewezen betrouwbaar
• Breed temperatuurbereik -40 ⁰C ... + 85 ⁰C
• Mechanische levensduur> 30 miljoen bewerkingen
• Elektrische levensduur b.v. > 10 miljoen bewerkingen op 0,5 A, 24 VDC
• Gegevensmatrix met serienummer voor traceerbaarheid
• Geïntegreerde snaplock, geen externe borgclip nodig
• Transparante afdekking voor visuele inspectie
• Vele opties en stopcontacten beschikbaar

Download datasheet

Bekijk details

DGG-U200 relay - Large pull-in voltage range

• Sensitive coil (40% Unom)
• Low operating voltage
• Compact plug-in design
• Instantaneous, 2 C/O contacts
• Back EMF suppression diode
• Magnetic arc blow-out
• Flat, square and silver plated relay pins for excellent socket connection
• Wide range sockets
• Integrated snap lock
• Transparent cover
• High DC breaking capacity
• Optional positive mechanical keying relay to socket
• Flexibility by many options

Download datasheet

Bekijk details

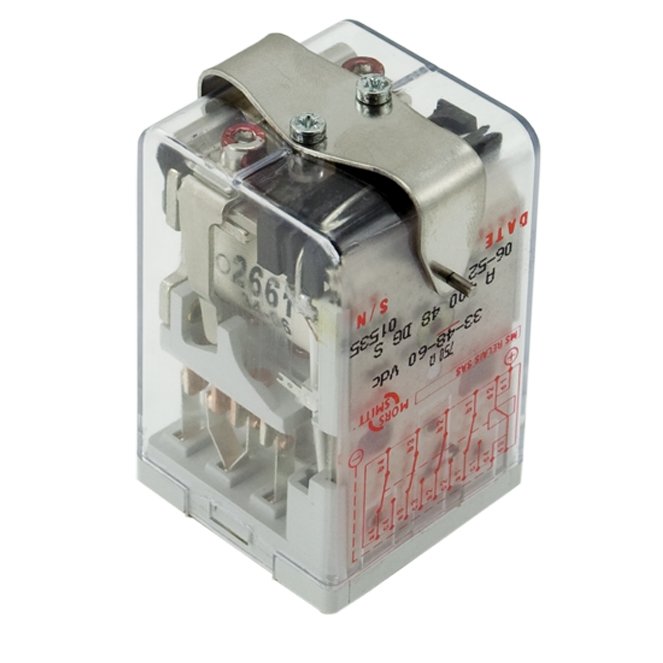

A 400 relay - 4 contacts

• Instantaneous relay
• Optional weld no transfer contacts for safety critical applications
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 8 A
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

AG 400 relay - Gold plated, 4 contacts

• Instantaneous relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), gold plated on silver
• Contact life (mechanical) of 100 million cycles
• 40 °C...+80 °C operating temperature
• Contacts cross pollution barrier
• Optional weld no transfer function

Download datasheet

Bekijk details

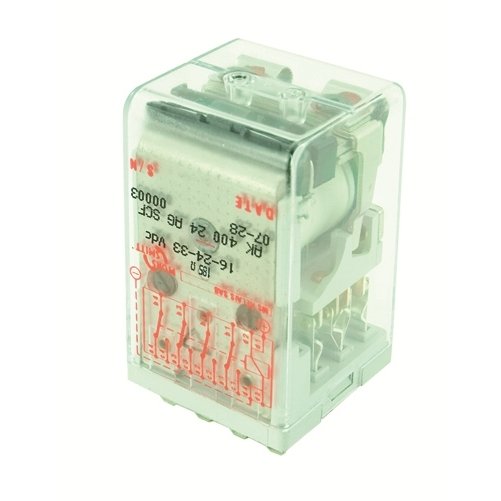

AK 400 safety relay

• Instantaneous relay
• Optional Weld no tranfer contacts for safety critical applications
• Weld resistant
• 4 double make - double break C/O contacts (form Z), 8 A
• Plug-in design with secure locking feature for maximum ease of maintenance
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

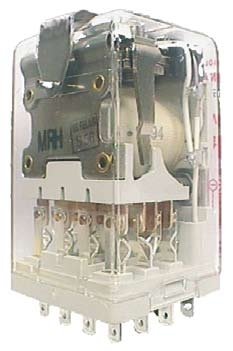

AM 400 relay - Mixed load, 4 contacts

• Instantaneous relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 3 double make / double break C/O silver contacts (form Z)
• 1 gold bifurcated C/O contact
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature
• Contacts cross pollution barrier
• Optional weld no transfer function for silver contacts

Download datasheet

Bekijk details

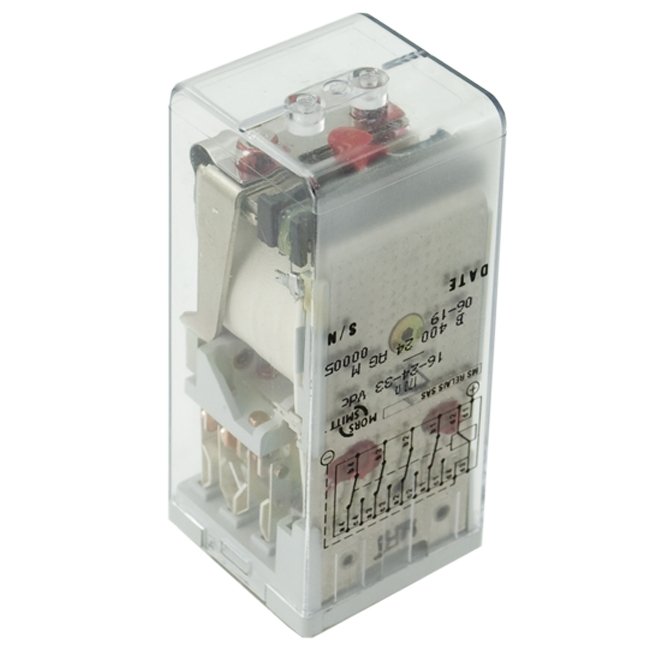

B 400 relay - Safety critical, 4 contacts

• Instantaneous & safety critical relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), 12 A
• Weld no transfer contacts standard
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

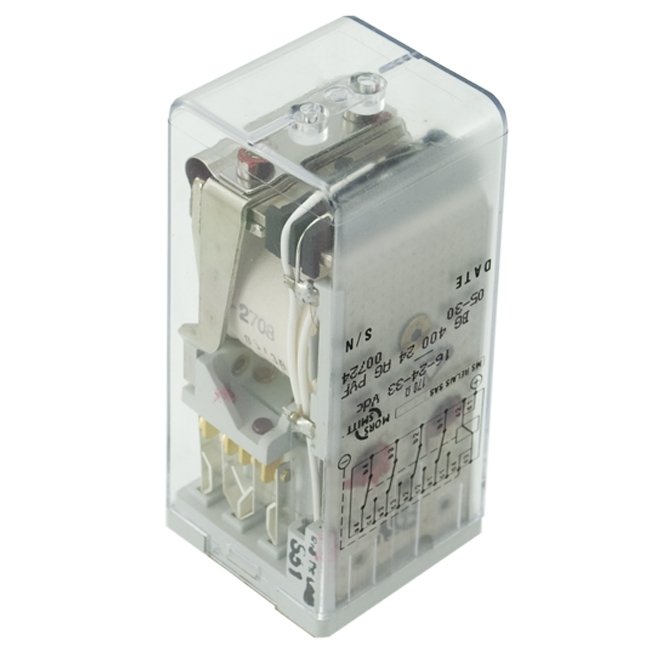

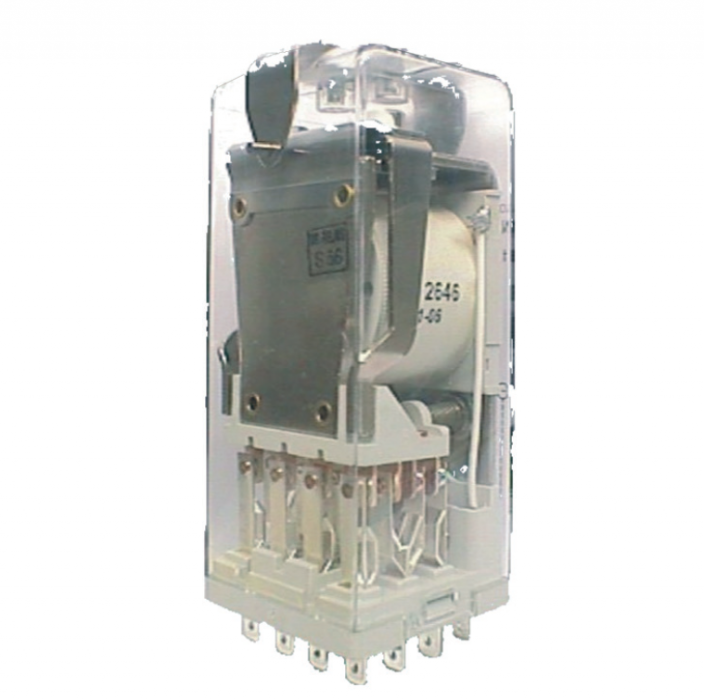

BG 400 relay - 4 gold contacts

• Instantaneous relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 4 double make / double break C/O contacts (form Z), gold plated on silver
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature
• Contacts cross pollution barrier
• Weld no transfer function

Download datasheet

Bekijk details

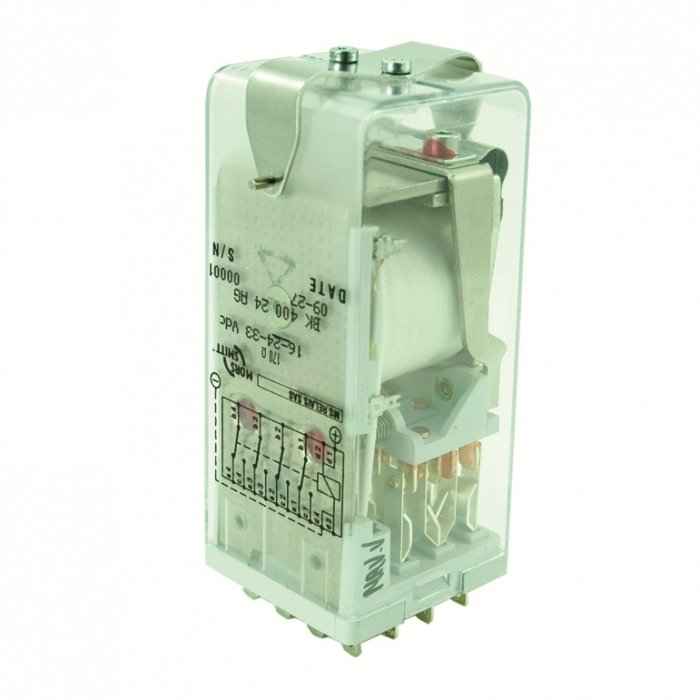

BK 400 safety relay

• Instantaneous
• Safety critical
• Weld resistant
• Weld no transfer safety contacts standard
• Plug-in design with secure locking feature
• 4 double make / double break C/O contacts (form Z), 12 A
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature.

Download datasheet

Bekijk details

BM 400 relay - Mixed load, 4 contacts

• Instantaneous relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 3 double make / double break C/O silver contacts (form Z)
• 1 gold bifurcated C/O contact
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature
• Contacts cross pollution barrier
• Weld no transfer function for silver contacts

Download datasheet

Bekijk details

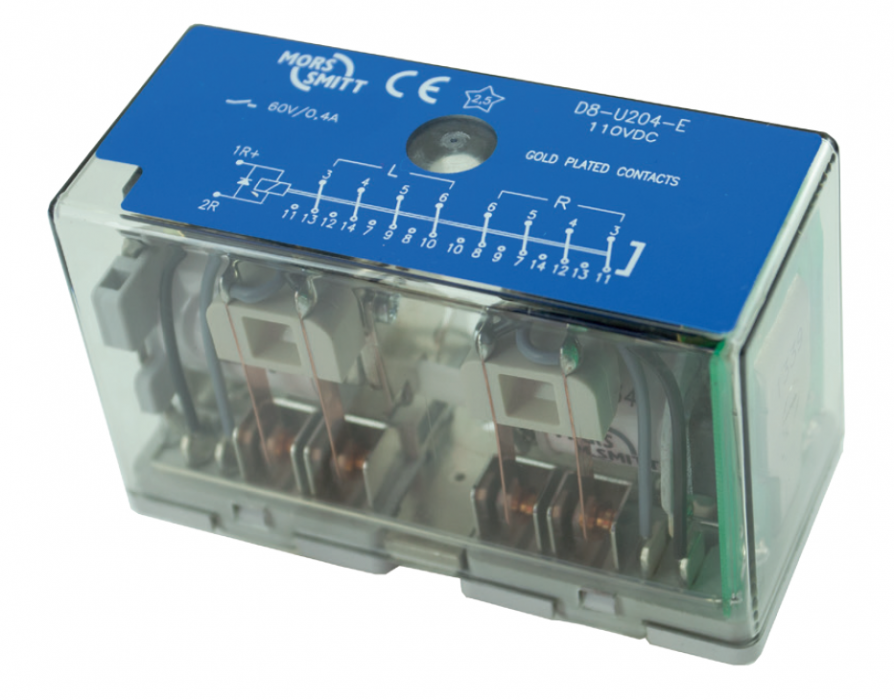

D8-U200 relay module - 8 pole

• Ultra compact space saving 8-pole relay module
• Easy replacement of contactors
• Module consists of 8-pole relay and socket
• Various contact combinations possible
• All 8-pole Mors Smitt relay configurations are possible
• Non polarity sensitive
• Heavy duty, high VDC switching
• Screw or spring clamp connections
• Terminals at front side
• Surface / wall and 35 mm rail mounting

Download datasheet

Bekijk details

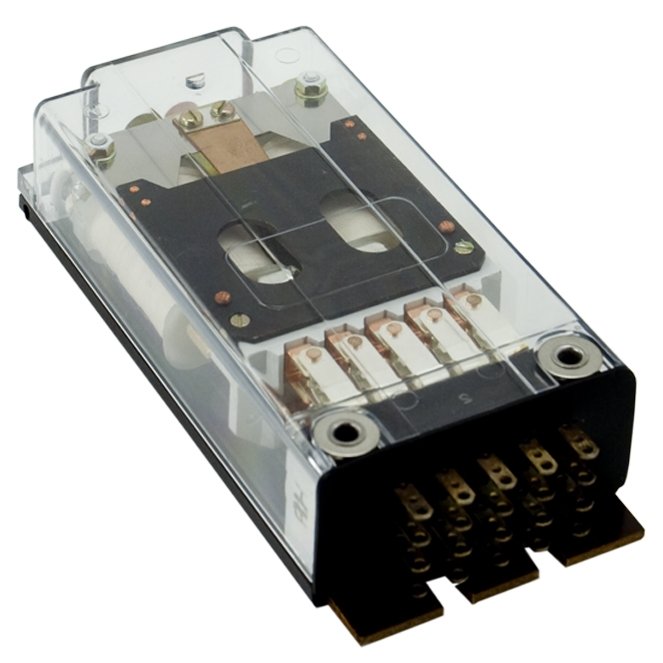

C relay - Safety critical, 9 contacts

• Instantaneous relay
• Ultra compact package size
• Safety critical relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 9 double break contacts in all N/O and N/C combinations
• Weld no transfer safety contacts standard
• Contact life (mechanical) of 100 million cycles
• -40°C...+80°C operating temperature

Download datasheet

Bekijk details

CG relay - Safety critical, 9 contacts, gold plate…

• Instantaneous relay
• Ultra compact package size
• Safety critical relay
• Plug-in design with secure locking feature for maximum ease of maintenance
• 9 double break contacts in all N/O and
• N/C combinations
• Weld no transfer safety contacts standard
• Contact life (mechanical) of 100 million cycles
• -40°C...+80°C operating temperature

Download datasheet

Bekijk details

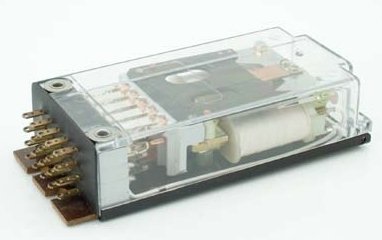

CK relay - safety critical, 9 contacts

• Instantaneous relay
• Safety critical relay
• Weld resistant
• Weld no transfer safety contacts standard
• Plug-in design with secure locking feature
• 9 double break contacts in all NO and NC combinations
• Contact life (mechanical) of 100 million cycles
• -40°C to +80°C operating temperature

Download datasheet

Bekijk details

CM relay - 7 contacts and 2 gold contacts

• Instantaneous relay
• For combined power & dry circuit applications in diesel locomotives
• 4 N/C + 5 N/O double break contacts with 1 N/C & 1 N/O gold bifurcated contact and all other contact in silver
• Weld no transfer safety contacts standard on silver contacts
• Contact life (mechanical) of 100 million cycles
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

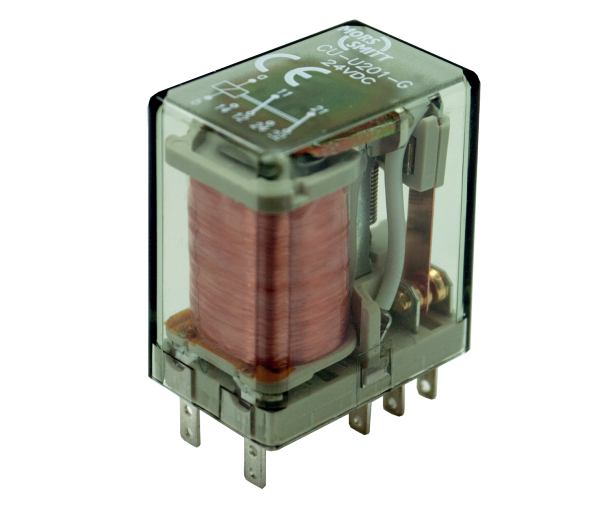

CU-U200-G relay - Miniature, 2 pole

• Miniature plug-in / PCB relay
• Instantaneous 2 C/O contacts
• Weld-no-transfer contacts
• Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
• Wide range sockets
• Transparent cover
• High insulation because of flash barrier
• Optional positive mechanical keying relay to socket

Download datasheet

Bekijk details

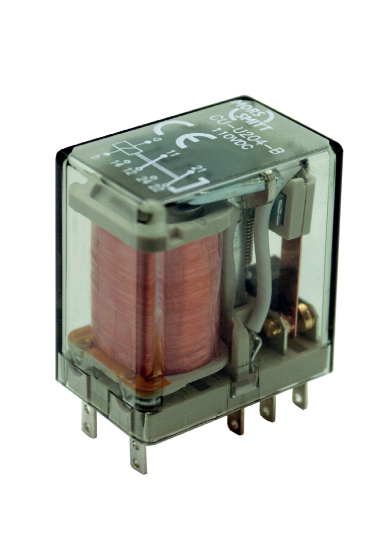

CU-U200-B relay - High contact life

• Miniature plug-in / PCB relay
• Instantaneous 2 C/O contacts
• Weld-no-transfer contacts
• Magnetic arc blow-out
• Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
• Wide range sockets
• Transparent cover
• Optional positive mechanical keying relay to socket

Download datasheet

Bekijk details

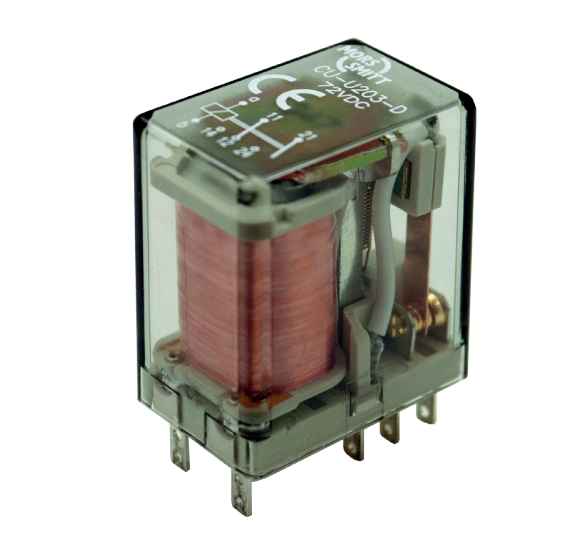

CU-U200-D relay - Miniature, large pull-in voltage…

• Miniature plug-in / PCB relay
• Sensitive coil (40 % Unom)
• Instantaneous 1 C/O + 1 N/O contact
• Weld-no-transfer contacts
• Flat, square and tin plated relay pins for excellent socket connection /
• PCB mounting pins
• Wide range sockets
• Transparent cover
• High insulation because of flash barrier
• Optional positive mechanical keying relay to socket

Download datasheet

Bekijk details

CU-U200-U relay - High contact life

• Miniature plug-in / PCB relay
• 1 double make/double break contact
• High maximum current
• Long electrical life
• Flat, square and tin plated relay pins for excellent socket connection /
• PCB mounting pins
• Wide range sockets
• Transparent cover
• Optional positive mechanical keying relay to socket

Download datasheet

Bekijk details

CU-U300-G relay - Miniature, AC coil

• Miniature plug-in / PCB relay
• AC coil
• Instantaneous, 2 C/O contacts
• Weld-no-transfer contacts
• Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
• Wide range sockets
• Transparent cover
• High insulation because of flash barrier
• Optional positive mechanical keying relay to socket

Download datasheet

Bekijk details
