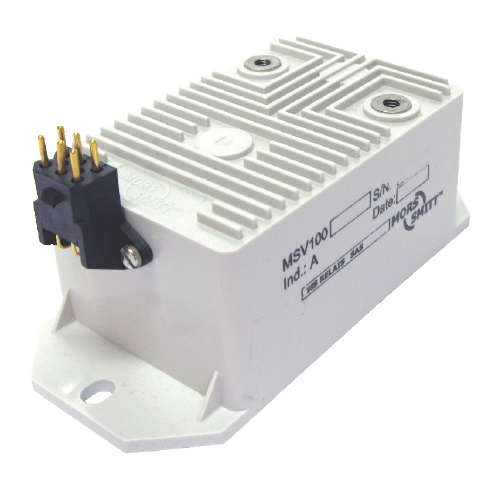

MSV100 - Hall effect transducer

Informatie

Application

The Mors Smitt transducers are used to measure high voltages in rolling stock and track side applications. High voltages are converted lineair to low power signals.

Description

The transducers are based on compensating the magnetic field by a closed loop system. The MSV100 is used for the measurement of AC and DC voltages with high galvanic isolation between the voltage carrying conductor and output of the sensor. The voltage transducer can handle pulsed voltages.The MSV100 Series is especially designed for secure measuring of a permanent voltage up to 950 V. The voltage measuring range covers a bandwidth from -1400 V...1400 V.


Features

  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50 ºC...+85 ºC


Railway Compliancy

All our hall effect sensors are designed according to railway regulations:
  • EN 50155 Railway application electronic equipment used in rollingstock
  • IEC 61373 Rolling stock equipment - Shock and vibration test
  • NF F16-101/102 Fire behaviour -  Railway rolling stock
  • IEC 60068-2-11 Environmental testing: Salt mist - Test Ka - 96 hours
