Hall effect sensors


Hall effect sensors

A new range of sensors based on closed loop hall effect technology, for measuring and monitoring of e.g. secondary transformer overload or shortcircuit detection, DC link from ground fault and
overload, motor overload.

Filter
Hall effect sensors

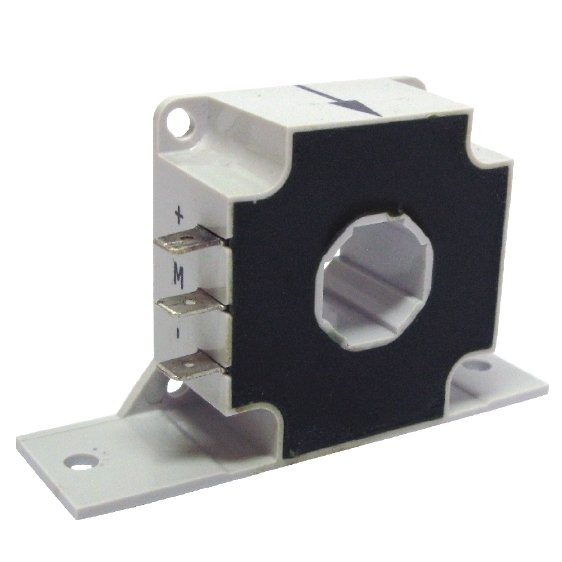

MSA100 - Hall effect transducer

  • Measuring current up to 100 A
  • Measuring bandwidth -200 A ... 200 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

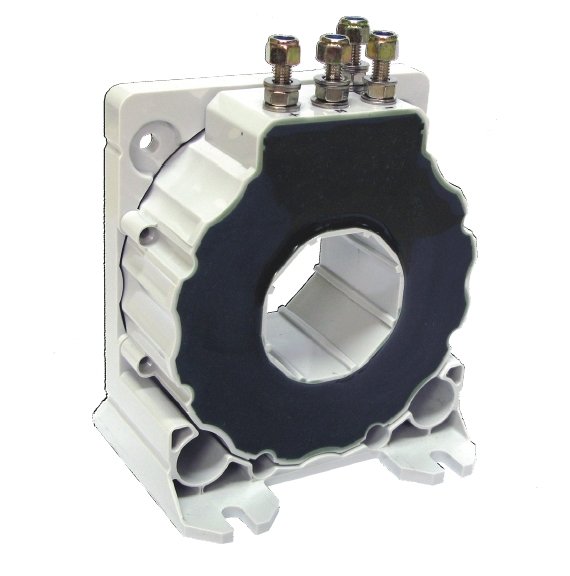

MSA1000 - Hall effect transducer

  • Measuring current up to 1000 A
  • Measuring bandwidth -2000 A ... 2000 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors


MSA200 - Hall effect transducer

  • Measuring current up to 200 A
  • Measuring bandwidth -400 A ... 400 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

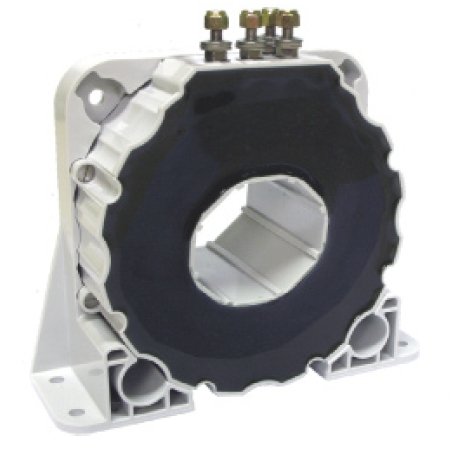

MSA2000 - Hall effect transducer

  • Measuring current up to 2000 A
  • Measuring bandwidth -3000 A ... 3000 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

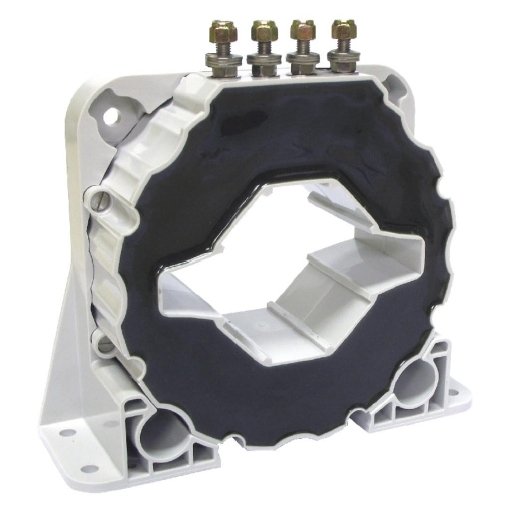

MSA2010 - Hall effect transducer

  • Measuring current up to 2000 A
  • Measuring bandwidth -3000 A ... 3000 A
  • Specially designed for railway
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors


MSA300 - Hall effect transducer

  • Measuring current up to 300 A
  • Measuring bandwidth -500 A ... 500 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

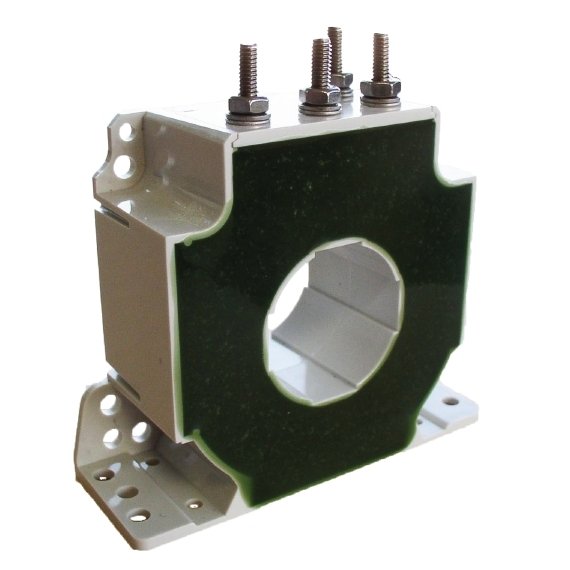

MSA500 - Hall effect transducer

  • Measuring current up to 500 A
  • Measuring bandwidth -1000 A ... 1000 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

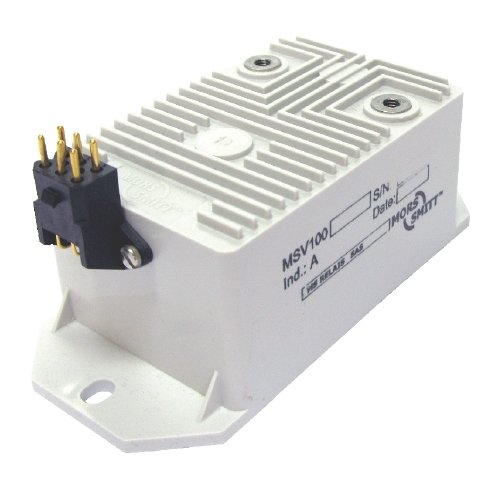

MSV100 - Hall effect transducer

  • Measuring voltage up to 940 V
  • Measuring bandwidth -1400 V ... 1400 V
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

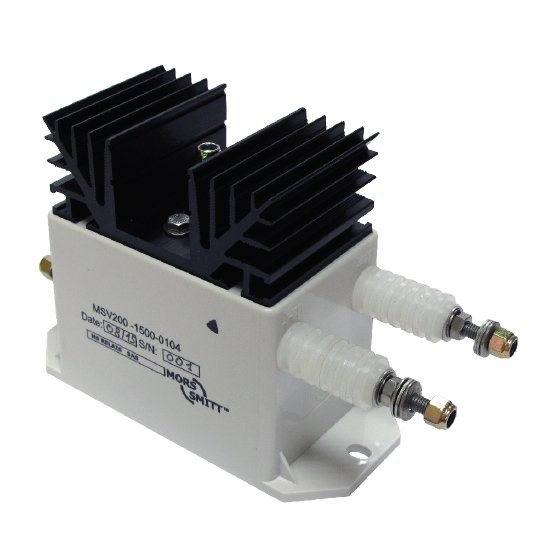

MSV200 - Hall effect transducer

  • Spanning meten tot 5000 V
  • Speciaal ontworpen voor spoorwegtoepassingen
  • Gesloten lus (gecompenseerd)
  • Hoge diëlektrische sterkte
  • Nauwkeurige lineariteit
  • Nauwkeurige nauwkeurigheid
  • Hoge dynamische respons
  • Geen foucaultverliezen in het magnetische circuit
  • EMC-afscherming (optioneel)
  • Breed temperatuurbereik, -50ºC .. + 85ºC
