Monitoring relays

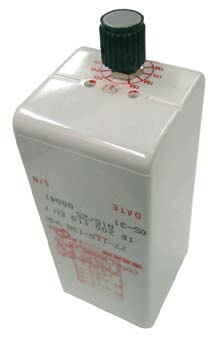

IB 200 relay - Current monitoring
Informatie
Description
This current sensor feeds a 2 changeover relay contacts for a measured current from 16 A to 24 A. A potentiometer allows the setting of the relay pick up from 15 A to 25 A. The maximal admissible current of the shunt is 50 A, other versions are available.
An 110 VDC auxiliary power supply is needed for the measure and the relay command.
The electronic device is put in a B box and worked with an external shunt (P929670). The reference socket for the B box module is:EA103BFD. The devices are mounted on 35 mm rail conform to EN 50022.
Application
The IB 200 relay is designed for current level sensing and used for example to monitor if the train magnetic brakes are active.
Features
-
Current monitoring relay
-
Adjustable current measured with an external shunt
-
2 C/O contacts (form Z)
-
-40 °C...+85 °C operating temperature
-
Optional lockable knob
Benefits
-
Proven reliable
-
Long life cycle
-
Easy to maintain and replace
-
Low life cycle cost
-
No maintenance
Railway compliancy
-
NF F 62-002 Rolling stock -Instantaneous relays contacts and sockets
-
NF F 16-101/102 Fire behaviour -Railway rolling stock
-
EN 50155 Railway application -Electronic equipment used on rolling stock
-
IEC 61373 Railway application - shock and vibration tests
