Application

The Mors Smitt transducers are used to measure high currents in rolling stock and track side applications. High currents are converted linear to low power signals.

Description

The transducers are based on compensating the magnetic field by a closed loop system.

The MSA range is used for the measurement of AC and DC currents with high galvanic isolation between the current carrying conductor and output of the sensor. The current transducer can handle pulsed currents.The MSA range is especially designed for secure measuring of a high permanent current. The current measuring range covers a bandwidth from -2000 A...2000 A.

The MSV range is used for the measurement of AC and DC voltages with high galvanic isolation between the current carrying conductor and output of the sensor. The voltage transducer can handle pulsed voltages.The MSV range is especially designed for secure measuring of a high permanent voltage. The current measuring range covers a bandwidth from -5000 V...5000 V.
Filter
Hall effect sensors

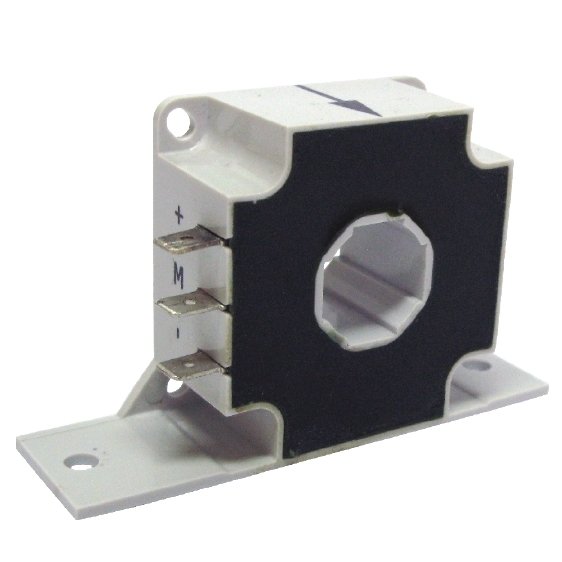

MSA100 - Hall effect transducer

  • Measuring current up to 100 A
  • Measuring bandwidth -200 A ... 200 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

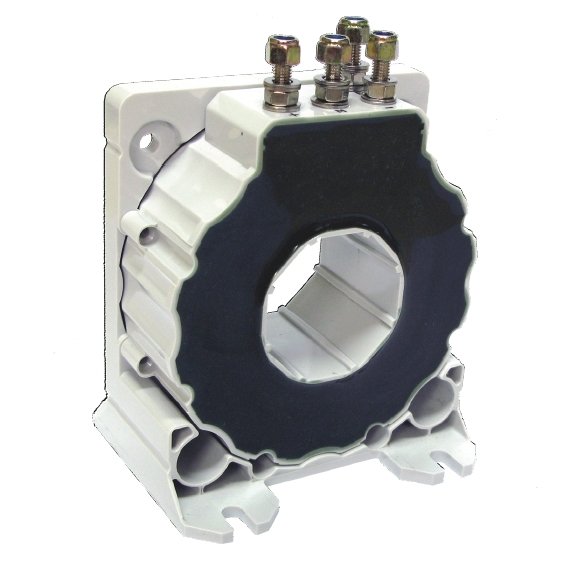

MSA1000 - Hall effect transducer

  • Measuring current up to 1000 A
  • Measuring bandwidth -2000 A ... 2000 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

MSA200 - Hall effect transducer

  • Measuring current up to 200 A
  • Measuring bandwidth -400 A ... 400 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

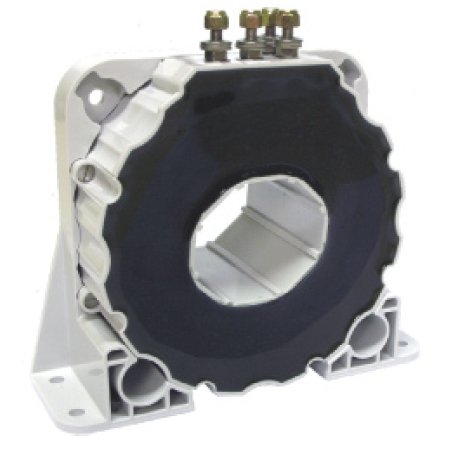

MSA2000 - Hall effect transducer

  • Measuring current up to 2000 A
  • Measuring bandwidth -3000 A ... 3000 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

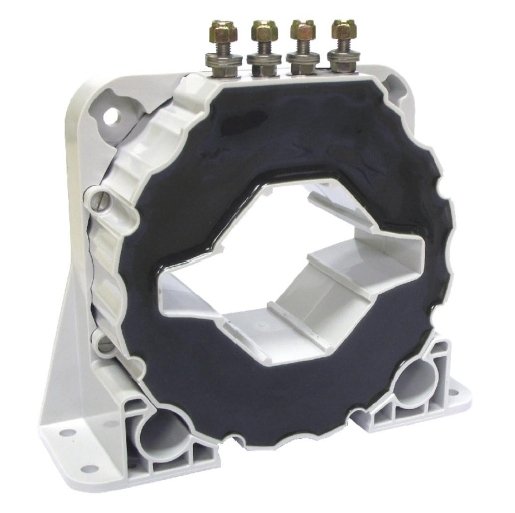

MSA2010 - Hall effect transducer

  • Measuring current up to 2000 A
  • Measuring bandwidth -3000 A ... 3000 A
  • Specially designed for railway
  • Closed loop (compensated)
  • High dielectric strenght
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

MSA300 - Hall effect transducer

  • Measuring current up to 300 A
  • Measuring bandwidth -500 A ... 500 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

MSA500 - Hall effect transducer

  • Measuring current up to 500 A
  • Measuring bandwidth -1000 A ... 1000 A
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

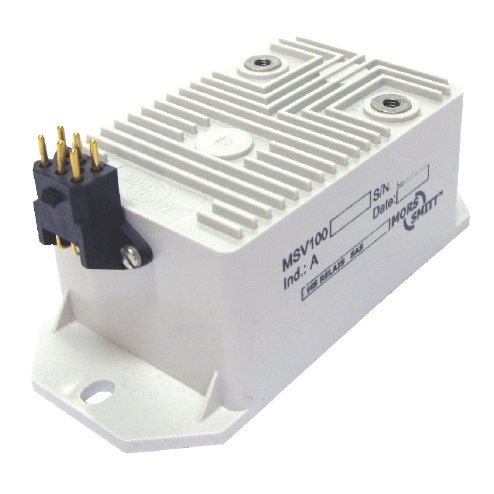

MSV100 - Hall effect transducer

  • Measuring voltage up to 940 V
  • Measuring bandwidth -1400 V ... 1400 V
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
Hall effect sensors

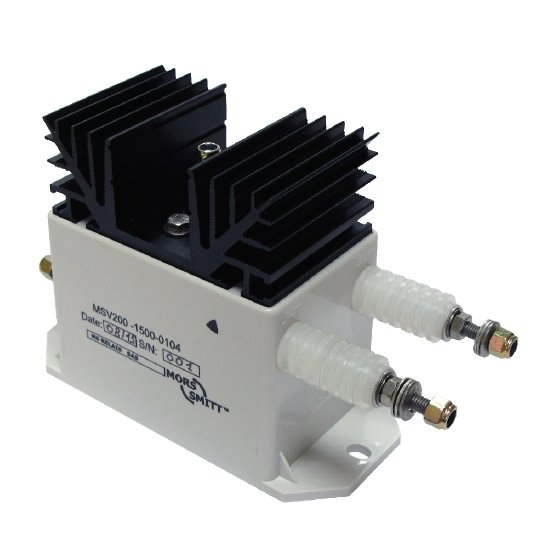

MSV200 - Hall effect transducer

  • Measuring voltage up to 5000 V
  • Specially designed for railway applications
  • Closed loop (compensated)
  • High dielectric strength
  • Precise linearity
  • Precise accuracy
  • High dynamic response
  • No foucault losses in the magnetic circuit
  • EMC shielding (optional)
  • Wide temperature range, -50ºC..+85ºC
