Relaisvoeten

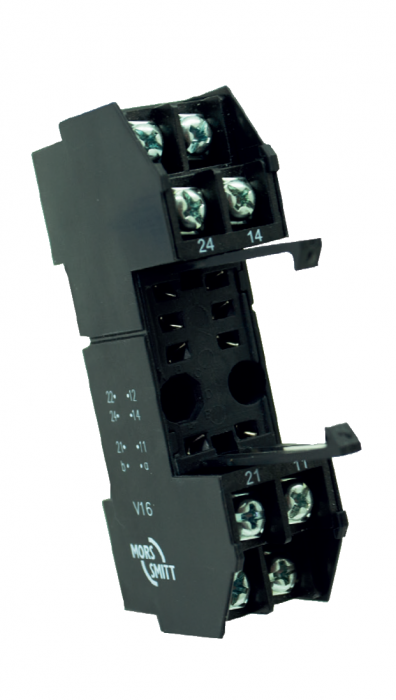

V16 relaisvoet Schroefklem, wandrailbevestiging

• Opbouw / wand en railmontage van 35 mm
• Schroefklemmen
• Geïntegreerde borgclip
• Ruimtebesparend
• Geschikt voor alle CU-relaisseries
• Maximaal twee draden van 4,0 mm2 per aansluitklem
• Positieve mechanische codering
• Optionele diode of dubbel zener beveiligingsapparaat
• Gesplitste vrouwelijke ontvanger voor relaispen met strakke grip
• Duidelijke terminal ID

Download datasheet

Bekijk details



V17-relaisvoet - Veerklem, wand- / railmontage

• Opbouw / wand en railmontage van 35 mm
• Klemmen voor veerklemmen
• Geïntegreerde borgclip
• Ruimtebesparend
• Geschikt voor alle CU-relaisseries
• Maximaal twee draden van 2,5 mm2 per aansluitklem
• Positieve mechanische codering
• Optionele diode of dubbel zener beveiligingsapparaat
• Gesplitste vrouwelijke ontvanger voor relaispen met strakke grip
• Terminal-ID wissen

Download datasheet

Bekijk details



V18 socket - PCB mount

• PCB mount
• Integrated retaining clip
• Space saving
• Suitable for all CU relays
• Postive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

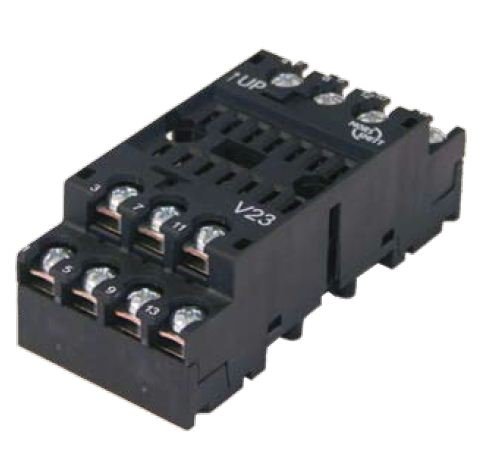

V23 socket - Screw terminal, wall/rail mount

• Opbouw / wand en railmontage van 35 mm
• Stevige schroefklemmen
• Geen interne solderen / verbindingen
• Aanraakbestendig IP20
• Hoogte besparende railmontage van 35 mm
• Geschikt voor alle D-U-relaisseries
• Maximaal twee draden van 2,5 mm2 per aansluitklem (7,5 mm brede lippen)
• Positieve mechanische codering
• Trifurcated vrouwelijke ontvanger voor relaispen met strakke grip
• Terminal-ID wissen

Download datasheet

Bekijk details

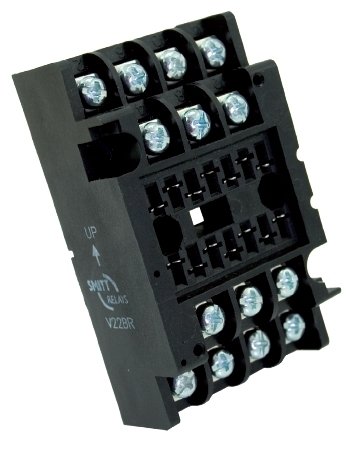

V22BR socket - Screw terminal, wall mount

• Surface / wall mount
• Sturdy screw terminals
• Suitable for 9 mm ring tabs
• Suitable for all D-U relay series
• Up to two wires of 2.5 mm² per connection terminal
• Positive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details



V23BR socket - Screw terminal, rail mount

• 35 mm rail mount
• Sturdy screw terminals
• Suitable for 9 mm ring tabs
• Height saving 35 mm rail mounting
• Suitable for all D-U relay series
• Up to two wires of 2.5 mm2 per connection terminal
• Positive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

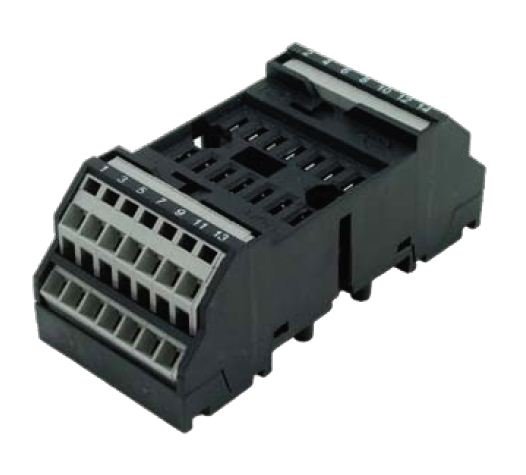

V29-relaisvoet - Veerklemaansluiting, wand- / rail…

• Opbouw / wand en railmontage van 35 mm
• Robuuste klemklemmen
• Tweelingaansluiting per relaiscontact
• Geen interne solderen / verbindingen
• Aanraakbestendig IP20
• Hoogte besparende railmontage van 35 mm
• Geschikt voor alle D-U-relaisseries
• Eenvoudige en snelle installatie (tot 75% reductie van bedradingstijd)
• Positieve mechanische codering
• Trifurcated vrouwelijke ontvanger voor relaispen met strakke grip
• Terminal-ID wissen

Download datasheet

Bekijk details

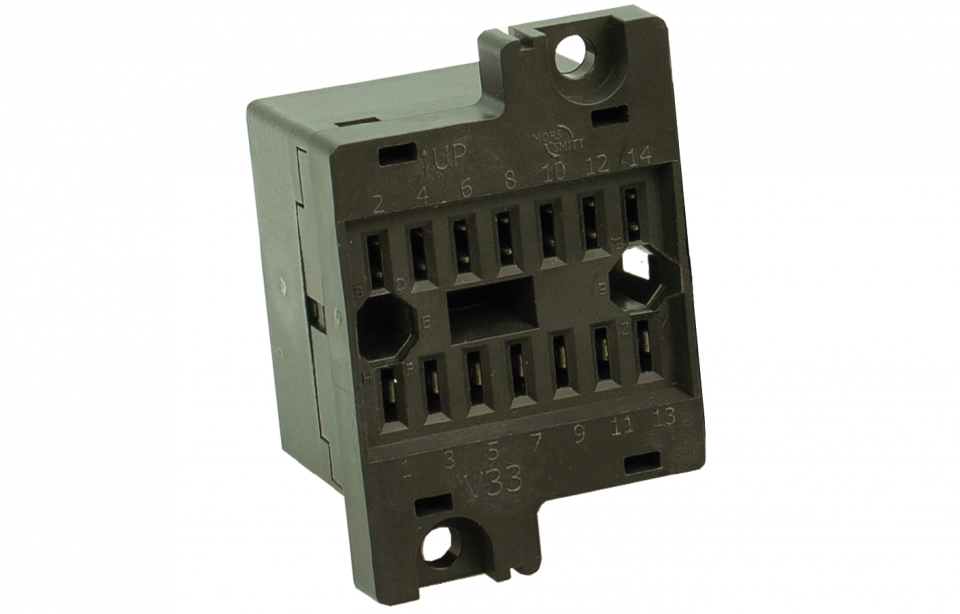

V33 socket – push-in terminal, panel mount

• Panel / flush mount
• Very compact solution
• Sturdy push-in terminals
• Solid and stranded wires with ferrules can be inserted easily without using a tool
• Stranded wires without ferrules can be inserted with a flatbladed screwdriver
• Twin connection per relay contact
• Large wires up to 3.3 mm² (AWG 12)
• High density matrix of relay/sockets possible, horizontal and vertical stacked
• Suitable for all railway and industry D- & D-U relay series
• Easy & quick installation (up to 75% reduction of wiring time)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

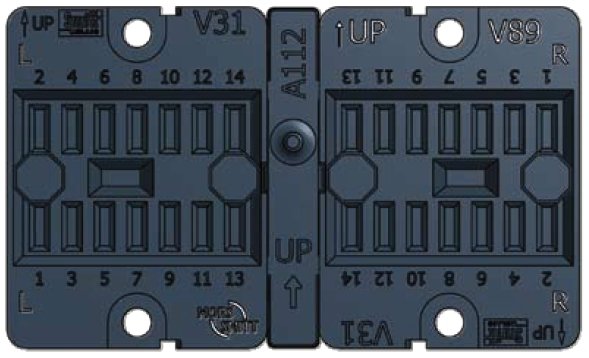

V31 socket - Faston terminal, panel mount

• Panel mount
• Sturdy faston terminals
• Space saving
• Suitable for all D-U relay series
• Up to two faston connections of 4.8 x 0.8 mm
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

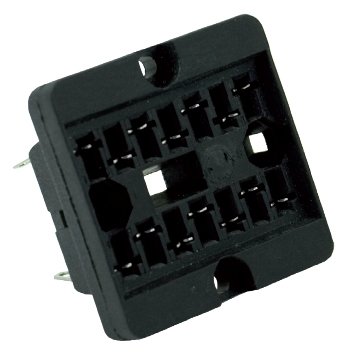

V3 socket - Soldering terminals, panel mount

• Panel / flush mount
• Sturdy soldering terminals
• No internal connections
• Space saving
• Suitable for all D-U relay series
• Positive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details



V26 socket - Crimp terminal, panel mount

• Panel mount
• Crimp contacts
• Space saving
• Suitable for all D-U relay series
• Positive mechanical keying
• Clear terminal ID

Download datasheet

Bekijk details



V32 socket - PCB mount

• PCB mount
• Space saving
• Suitable for all D-U relay series
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details



EA103 relay socket

• Front connection, with screw terminals
• No internal soldering / connections
• For surface or optional 35 mm rail mount
• Wire locking spring
• EA 103 AF suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
• EA 103 BF suitable for all B series relays (B 400, BK, BM, BG, TBBU)
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

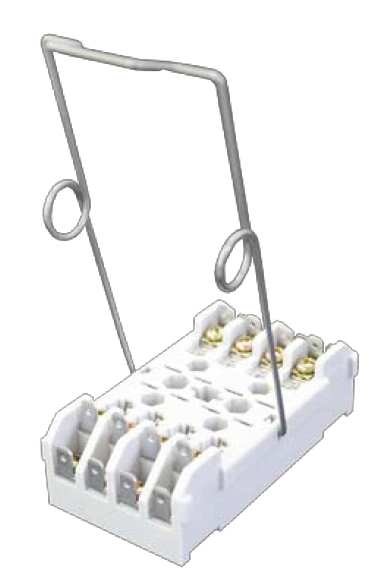

EA105 relay socket

• Front connection, with single faston
• No internal soldering / connections
• For surface or optional 35 mm rail mount
• Wire locking spring
• EA 105 AF suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
• EA 105 BF suitable for all B series relays (B 400, BK, BM, BG, TBBU)
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details



EA 111 relay socket

• Front connection
• Cage clamp connection
• Up to 2,5 mm2 wire terminal
• No internal soldering / connections
• Wire locking spring
• For surface or 35 mm rail
• A 111 AF suitable for all A relays and modules
• EA 111 BF suitable for all B relays
• EA 111 EF suitable for all E relays
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

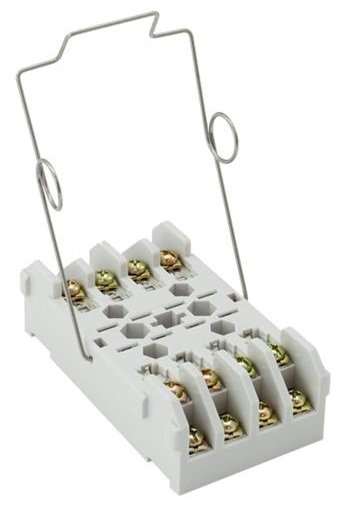

EA102 relay socket

• Rear connection, with double faston 5 mm
• No internal soldering / connections
• For panel mount
• Locking bracket or wire locking spring
• EA 102A suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
• EA 102B suitable for all B series relays (B 400, BK, BM, BG, TBBU)
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details



EA104 relay socket

• Rear connection, with single faston 5 mm
• No internal soldering / connections
• For panel mount
• Locking bracket or wire locking spring
• EA104 A suitable for all A series relays and modules (A400, AK, AM, AG, TALOR, TAC)
• EA104 B suitable for all B series relays (B400, BK, BM, BG, TBBU)
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details

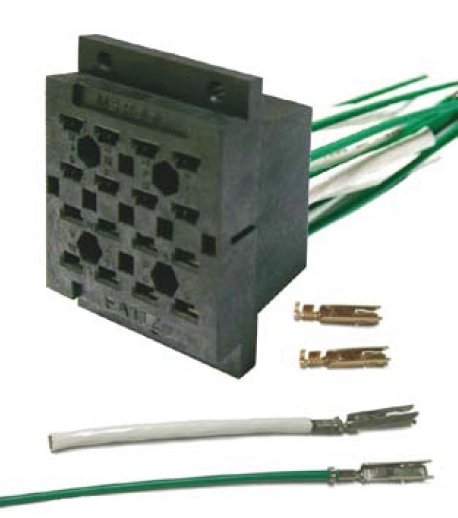

EA 112 relay socket

• Rear connection, with crimp contacts
• No internal soldering / connections
• For panel/flush mount
• Wire locking spring
• EA 112 A suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
• EA 112 B suitable for all B series relays (B 400, BK, BM, BG, TBBU)
• -40 °C...+80 °C operating temperature

Download datasheet

Bekijk details



V93 socket - Screw terminal, wall/rail mount 8 pol…

• Surface / wall and 35 mm rail mount
• Sturdy screw terminals
• No internal solderings / connections
• Touch proof IP20
• Height saving 35 mm rail mounting
• Suitable for all D8 and KDN relay series
• Up to two wires of 2.5 mm2 per connection terminal (7.5 mm wide tabs)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

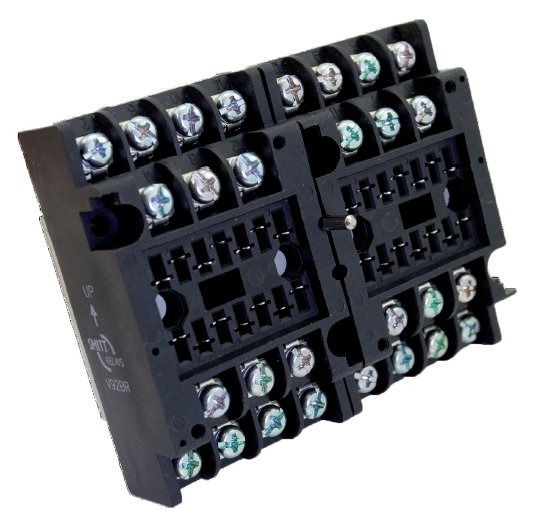

V92BR socket - Screw terminal, wall mount 8 pole

• Surface / wall mount
• Sturdy screw terminals
• Suitable for 9 mm ring tabs
• Suitable for all D8 and KDN relay series
• Up to two wires of 2.5 mm2 per connection terminal
• Positive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

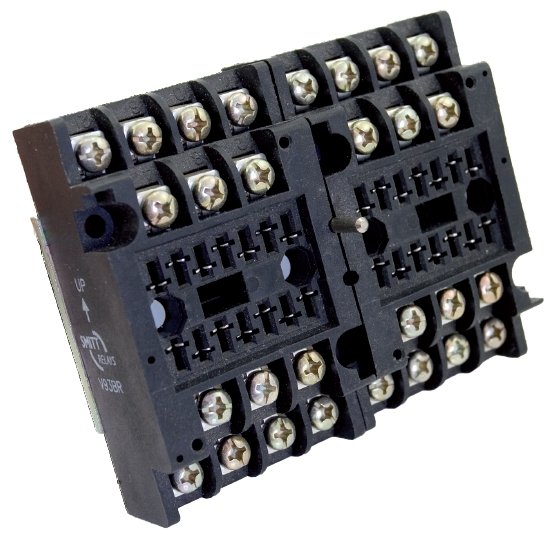

V93BR socket - Screw terminal, rail mount 8 pole

• 35 mm rail mount
• Sturdy screw terminals
• Suitable for 9 mm ring tabs
• Height saving 35 mm rail mounting
• Suitable for all D8 and KDN relay series
• Up to two wires of 2.5 mm2 per connection terminal
• Positive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

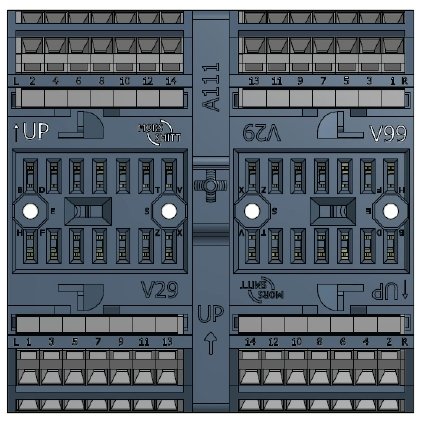

V99 socket - Spring terminal, wall / rail mount, 8…

• Surface / wall and 35 mm rail mount
• Sturdy spring terminals
• No internal solderings / connections
• Touch proof IP20
• Height saving 35 mm rail mounting
• Suitable for all D8 and KDN relay series
• Up to two wires of 2.5 mm² per relay contact
• Easy & quick installation (up to 75% reduction of wiring time)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details

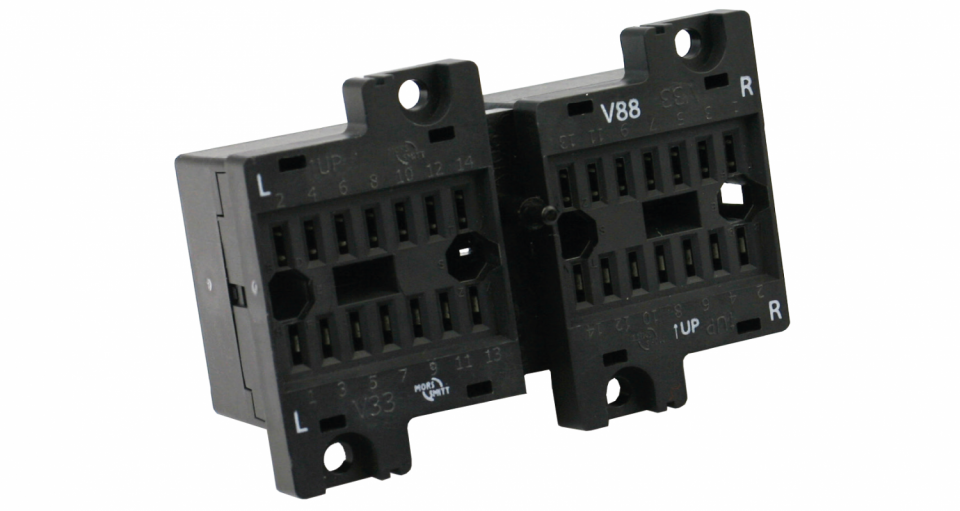

V88 socket – push-in terminal, panel mount 8 pole

• Panel / flush mount
• Very compact solution
• Sturdy push-in terminals
• Solid and stranded wires with ferrules can be inserted easily without using a tool
• Stranded wires without ferrules can be inserted with a flat-bladed screwdriver
• Twin connection per relay contact
• Large wires up to 3.3 mm² (AWG 12)
• High density matrix of relay/sockets possible, horizontal and vertical stacked
• Suitable for all railway and industry D8- & KDN relays
• Easy & quick installation (up to 75% reduction of wiring time)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details



V89 socket - Faston terminal, panel mount 8 pole

• Panel mount
• Sturdy faston terminals
• Space saving
• Suitable for all D8 and KDN relay series
• Up to two faston connections of 4.8 x 0.8 mm
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet

Bekijk details



V96 socket - Soldering terminals, panel mount, 8 p…

• Panel / flush mount
• Sturdy soldering terminals
• No internal soldering connections
• Space saving
• Suitable for all D8 and KDN relay series
• Positive mechanical keying
• Bifurcated female receiver for tight grip relay pin
• Clear terminal ID

Download datasheet
