ZJ1511

Description

D.C. POLARISED MAGNETIC STICK LINE RELAY
The ZJ1511 is a 4N 4R AC Immune Polar Stick Line Relay where the relay is dependent on the polarity of the energising current and the contacts are to remain in their last operated position until the relay is re-energised in the opposite sense. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/001140
• Network Rail Certification No: PA05/04802
• Q Reference: PS
• Pin Code: 0014
• BRB Specification: 936A
• Complete Contact Arrangement: 4F4B
• Nominal Voltage/Current: 24V d.c.

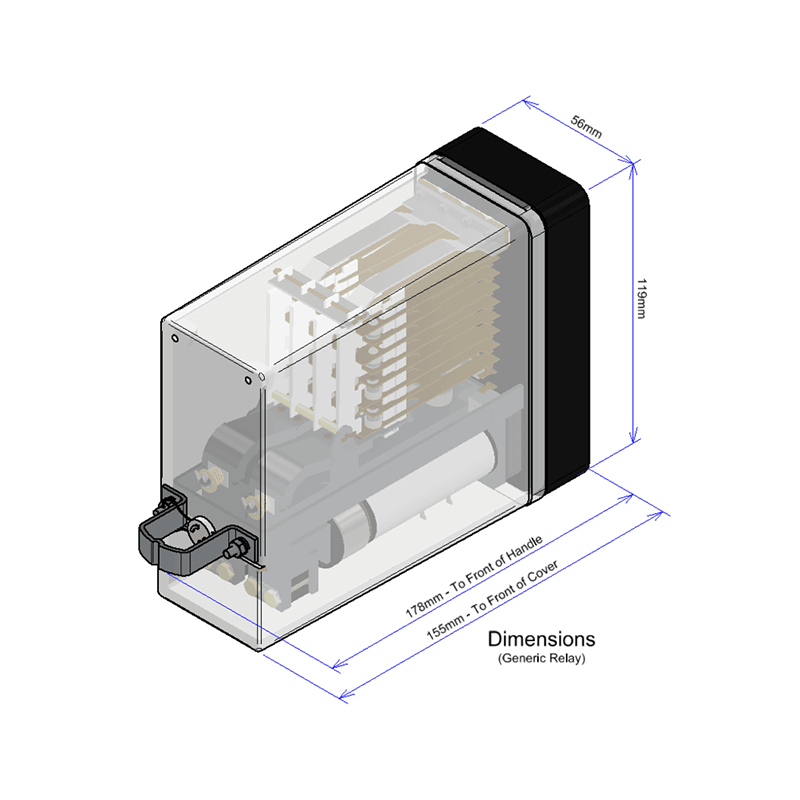

• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.28kg
