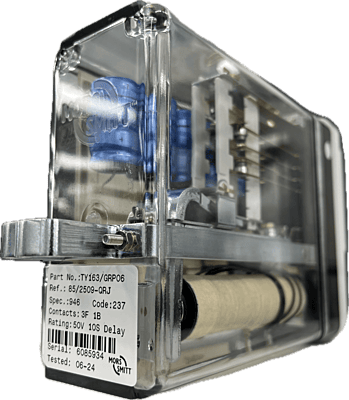

TY163/GRP06

Description

D.C. NEUTRAL TIME DELAY RELAY (10 Seconds)
The TY163/GRP06 is a 3F 1B relay for use where a 10 second time delay is required upon de-energisation which is in excess of that obtainable conveniently from a relay with a slugged iron circuit. The time delay is achieved via a resistor/capacitor circuit. The delay is not adjustable. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/002509
• Network Rail Certification No: PA05/04802
• Q Reference: QRJ
• Pin Code: 0237
• BRB Specification: 946
• Complete Contact Arrangement: 3F1B
• Nominal Voltage/Current: 50V d.c.

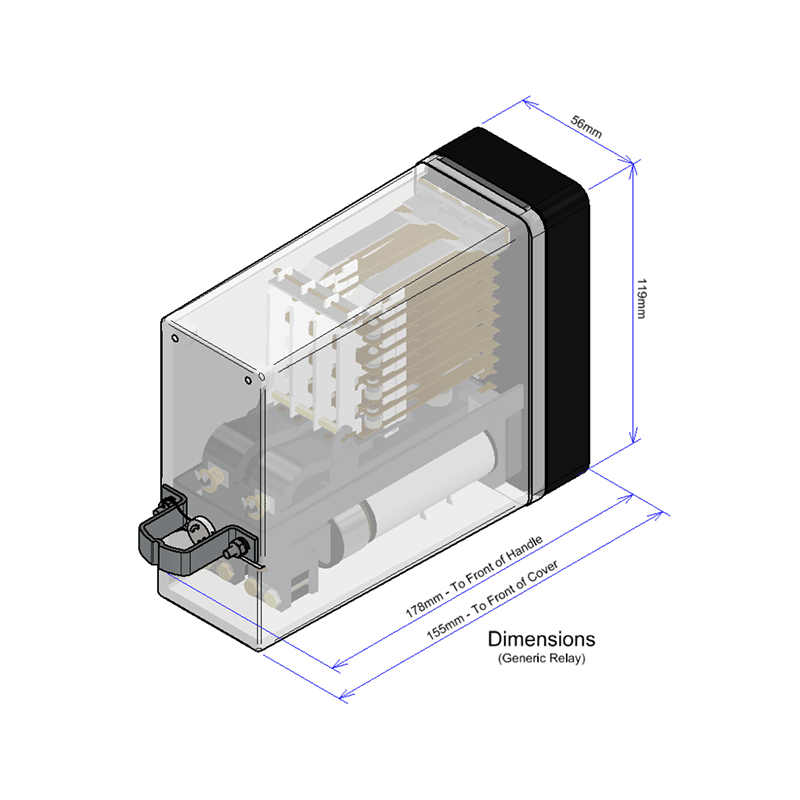

• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
