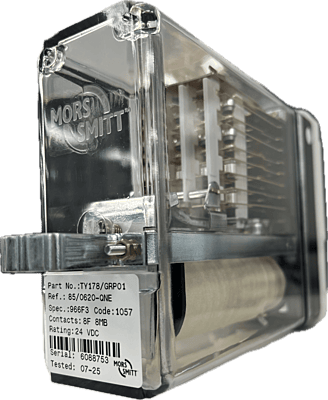

TY178/GRP01

Description

D.C. NEUTRAL LINE RELAY WITH MEDIUM DUTY BACK CONTACTS
The TY178/GRP01 is an 8F 8B Neutral Line Relay for general railway trackside signalling applications where greater current carrying capacity over the back contacts is required, but special characteristics such as AC immunity, slow release etc. are not required. Of compact modular plug-in design it has non-weld front contacts and weld-resistant back contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/000620
• Network Rail Certification No: PA05/04802
• Q Reference: QNE
• Pin Code: 1057
• BRB Specification: 966 F3
• Complete Contact Arrangement: 8F8B
• Nominal Voltage/Current: 24V d.c.

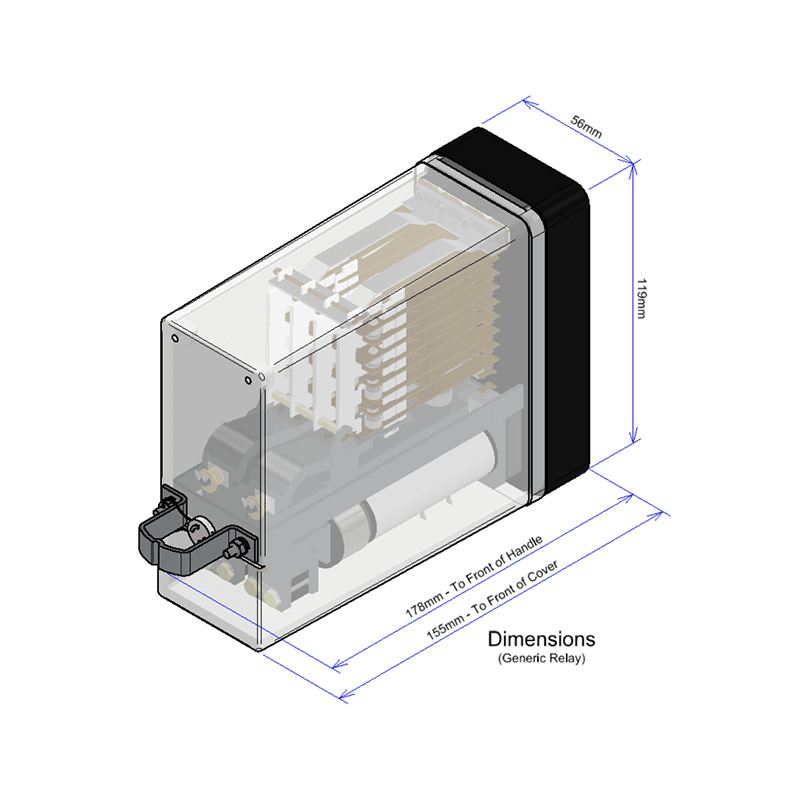

• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
