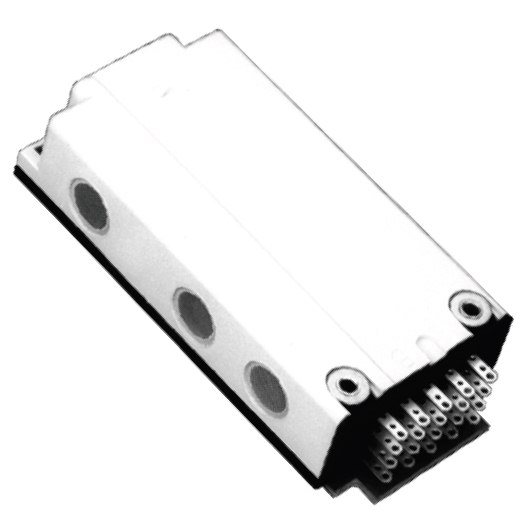

1019 relay - Solid state flashing

Informatie

Description

The 1019 is a solid state flashing relay to control filament light bulbs. The independant output channels configuration and flashing delay are factory set and depend on 1019 series.

The plug-in design offers secure locking feature for maximum ease of maintenance (no wires need to be disconnected or other hardware removed for relay inspection or replacement).

The resistance to impact and vibration is conforming the standards in force for Railway Transported Equipment.

Positive mechanical keying of relay to socket is built into relay and socket during manufacture and terminal identifications are clearly marked on identification plate that is permanently attached to the relay.

The 1019 solid state flasing relay is pluggable in the COR NJ socket.


Application

The 1019 solid state flashing relay is designed to control the train headlight
warning mode.



Features

  • Solid state outputs
  • One or two independant output channels
  • Flashing frequency varies according to series
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • -40 °C...+70 °C operating temperature

Benefits

  • Proven reliable
  • Long life cycle
  • Accurate timing
  • Easy to maintain and replace
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • NF F 62-002 Rolling stock - Instantaneous relays contacts and sockets
  • NF F16-101/102 Fire behaviour - Railway rolling stock
  • EN 50155 Railway application - Electronic equipment used on rolling stock
  • IEC 61373 Railway application - Shock and vibration tests
