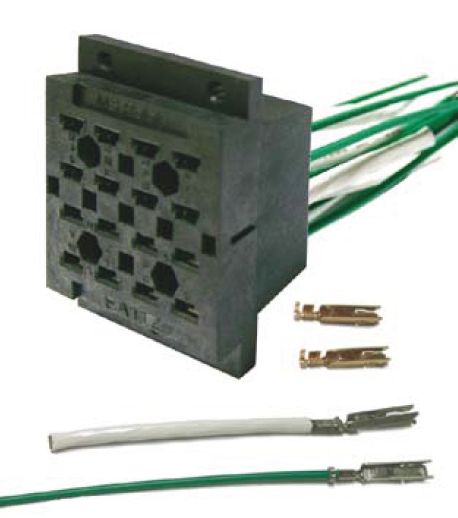

EA 112 relay socket

Name: EA 112 relay socket
Brand: Eigen merk
Availability: InStock

Informatie

Description

The EA 112 socket has crimp contacts to allow rear connection on the socket.

The EA112 A or B socket is equipped with wire locking spring or locking bracket mechanism. Hexagonal plastic keys and round plastic plugs are provided for relay type coding, but not inserted. Keying can be provided as an option with matching relay keying.

The EA 112 A socket is suitable for all A type relays and modules.
The EA 112 B socket is suitable for all B type relays and modules.

Application

The EA 112 socket is designed for surface/flush mount of relays and modules
with rear crimp contacts.

Features

Rear connection, with crimp contacts
No internal soldering / connections
For panel/flush mount
Wire locking spring
EA 112 A suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
EA 112 B suitable for all B series relays (B 400, BK, BM, BG, TBBU)
-40 °C...+80 °C operating temperature

Benefits

Proven reliable
Long life cycle
Easy to maintain and replace
Low life cycle cost
No maintenance

Railway compliancy

NF F 62-002 Rolling stock - Instantaneous relay contacts and sockets
NF F 16-101/102 Fire behaviour - Railway rolling stock
