EA104 relay socket

Name: EA104 relay socket
Brand: Eigen merk
Availability: InStock

Informatie

Description

The EA 104 socket has single faston per terminal. 5 mm faston terminals are required for proper connection.

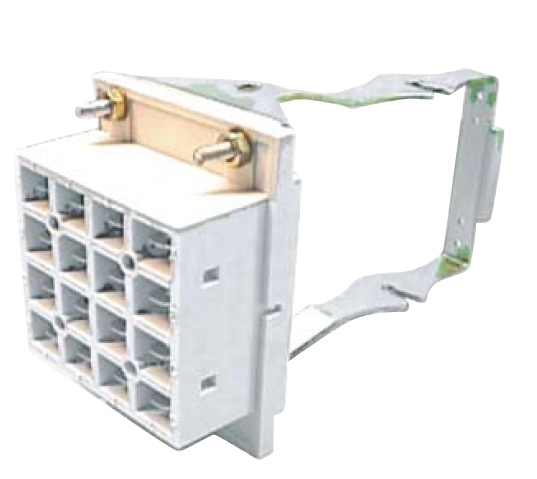

The EA104 A or B socket is equipped with a heavy duty locking bracket mechanism. The EA104 AF or BF socket is equipped with wire locking spring. Hexagonal plastic keys and round plastic plugs are provided for relay type coding, but not inserted. Keying can be provided as an option with matching relay keying.

The EA 104 A (F) socket is suitable for all A type relays and modules.

The EA 104 B (F) socket is suitable for all B type relays and modules.

Application

The EA 104 socket is designed for panel mount of relays and modules with single faston rear connection.

Features

Rear connection, with single faston 5 mm
No internal soldering / connections
For panel mount
Locking bracket or wire locking spring
EA104 A suitable for all A series relays and modules (A400, AK, AM, AG, TALOR, TAC)
EA104 B suitable for all B series relays (B400, BK, BM, BG, TBBU)
-40 °C...+80 °C operating temperature

Benefits

Proven reliable
Long life cycle
Easy to maintain and replace
Low life cycle cost
No maintenance

Railway compliancy

NF F 62-002 Rolling stock- Instantaneous relay contacts and sockets
NF F 16-101/102 Fire behaviour - Railway rolling stock
