V26 socket - Crimp terminal, panel mount

Name: V26 socket - Crimp terminal, panel mount
Brand: Eigen merk
Availability: InStock

Informatie

Description

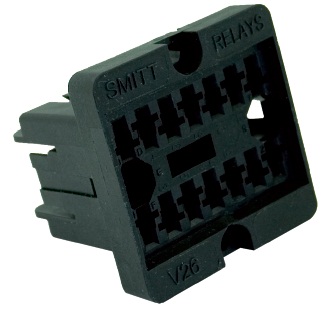

The V26 is a panel mount relay socket with one terminal per relay contact. The wires are crimped on separate crimp contacts A260 for insertion after crimping.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Application

The V26 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.

Suitable for all D-U relay series.

Features

Panel mount
Crimp contacts
Space saving
Suitable for all D-U relay series
Positive mechanical keying
Clear terminal ID

Benefits

Proven reliable
Long term availability
Easy to maintain
Low life cycle cost
No maintenance

Railway compliancy

EN 50155 Electronic equipment used on rolling stock for railway applications
IEC 60571 Electronic equipment used on railway vehicles
NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
NF F 62-002 On-off contact relays and fixed connections
