V22BR socket - Screw terminal, wall mount

Informatie

Description

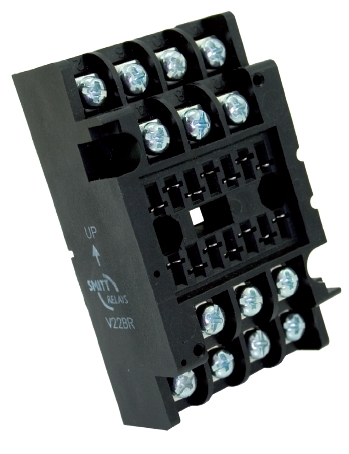

The V22BR is a surface / wall mount relay socket with extra space for ring tabs. The V22BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.


Application

The V22BR relay socket is suitable for general railway applications with a space saving design, where extra space for ring tabs is necessary. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.
Suitable for all D-U relay series.



Features

  • Surface / wall mount
  • Sturdy screw terminals
  • Suitable for 9 mm ring tabs
  • Suitable for all D-U relay series
  • Up to two wires of 2.5 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID

Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • NF F 62-002 On-off contact relays and fixed connections
