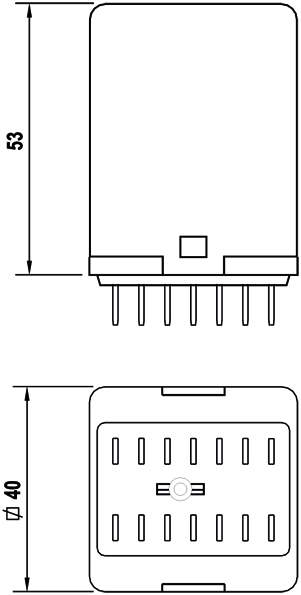

Technische tekeningen
Drawings - D-Relay Industry.zip
Drawings - D-Relay Industry.zip
Meet- & bewaking relais

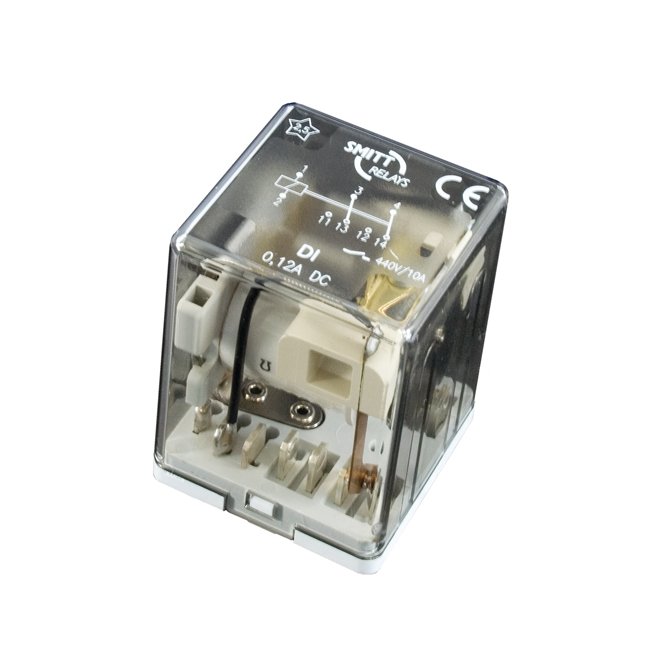

DI serie stroom monitoring vermogens relais
Informatie
Kenmerken van de DI:
Relais voor de monitoring van de status van bijvoorbeeld lampen, motoren en verwarmingselementen door de spoel van het relais in serie te verbinden.
-

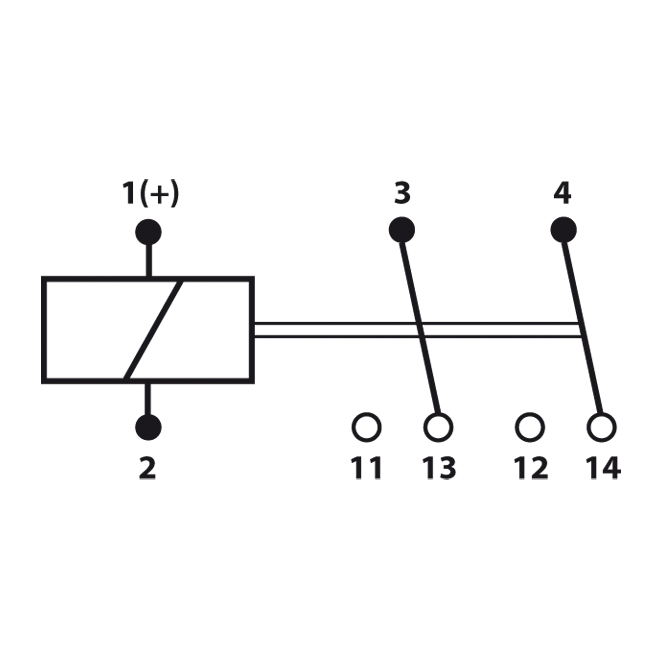

2 Wisselcontacten
-
DC of AC stroom spoel
-
Cadmium vrije contacten
