6RJ Series High Speed Tripping Relays

6RJ11 Low Burden Self Reset High Speed Trip Relay

  • High speed operation
  • Low burden
  • Self reset contacts
  • Hand reset flag indicator
  • 5 or 10 contacts
  • Equivalent function to MVAJ11
  • 2HSM502 specification
6RJ Series High Speed Tripping Relays

6RJ13 Low Burden Hand Reset Trip & Lock Out Relay

  • High speed operation
  • Low burden
  • Hand reset contacts & flag
  • 5 or 10 contacts
  • Equivalent function to MVAJ13
  • 2HSM504 specification
6RJ Series High Speed Tripping Relays

6RJ14 Low Burden Electrical Reset Trip & Lockout R…

  • High speed operation
  • Low burden
  • Electrical reset contacts
  • Independent hand reset flag
  • 5 or 10 contacts
  • 2HSM506 specification
6RJ Series High Speed Tripping Relays

6RJ15 Low Burden Hand / Electrical Reset Trip & Lo…

  • High speed operation
  • Low burden
  • Hand & electrical reset contacts
  • Independent hand reset flag
  • 5 or 10 contacts
  • Equivalent function to MVAJ15
  • 2HSM509 specification
6RJ Series High Speed Tripping Relays

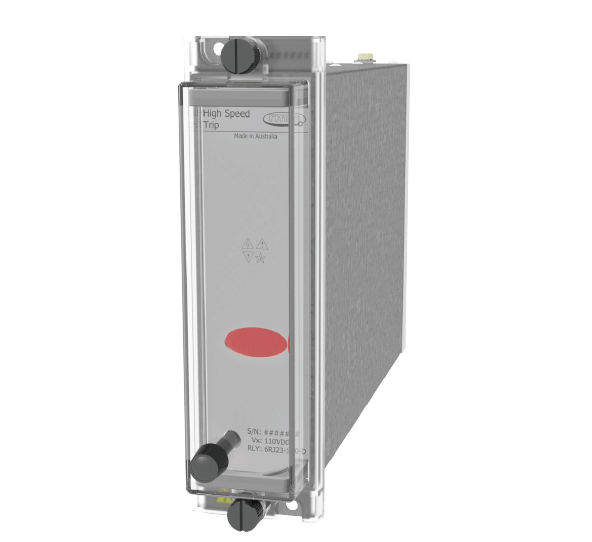

6RJ21 High Speed Tripping Relay

  • High speed operation
  • High burden
  • Self reset contacts
  • Hand reset flag indicator
  • 5 or 10 contacts
  • Equivalent function to MVAJ21
  • 2HSM512 specification
6RJ Series High Speed Tripping Relays

6RJ21-20 High Speed Tripping Relay

  • High speed operation
  • High burden
  • Self reset contacts
  • Hand reset flag indicator
  • 20 contacts
  • Equivalent function to MVAJ21
  • 2HSM520 specification
6RJ Series High Speed Tripping Relays

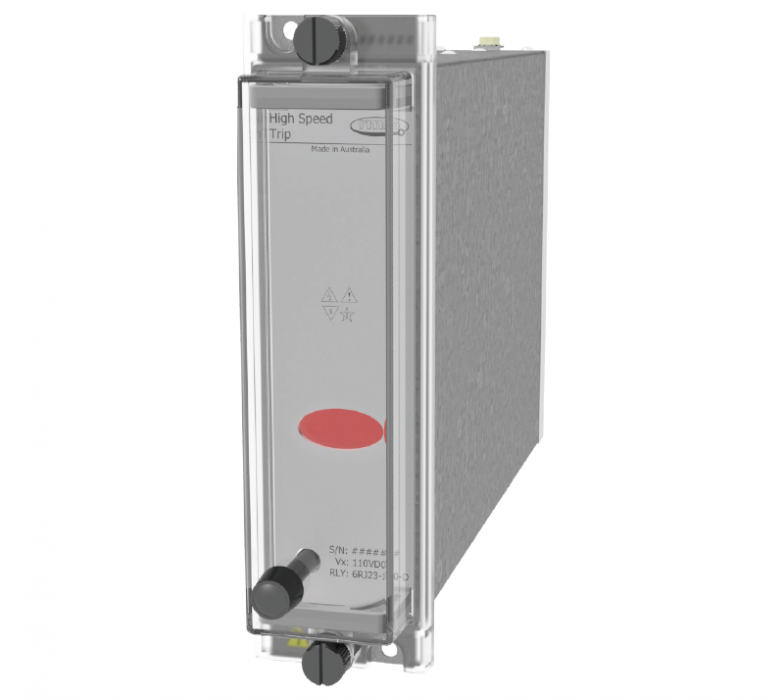

6RJ23 High Speed Tripping Relay

  • High speed operation
  • High burden
  • Hand reset contacts & flag
  • High security mechanical lock out
  • 5 or 10 contacts
  • Equivalent function to MVAJ23
  • 2HSM514 specification
6RJ Series High Speed Tripping Relays

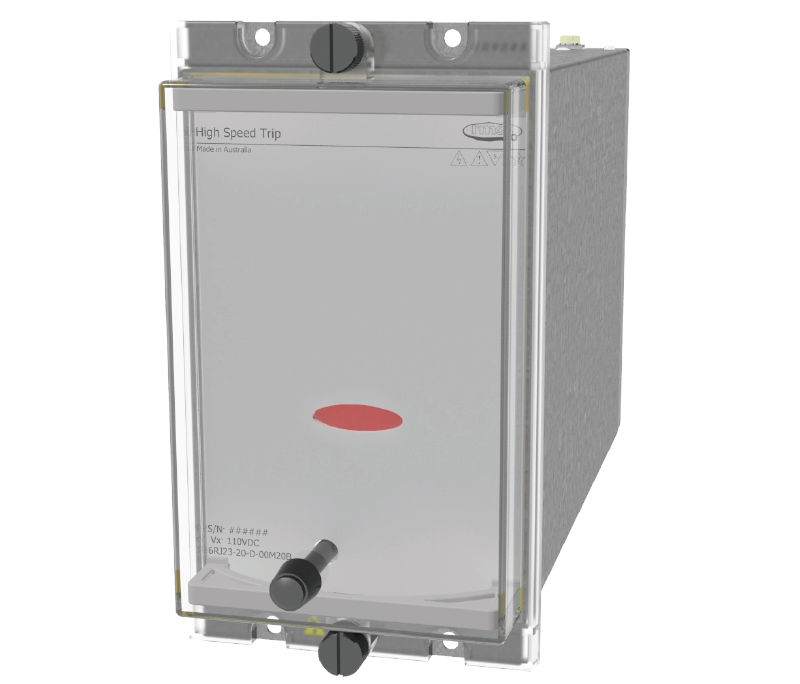

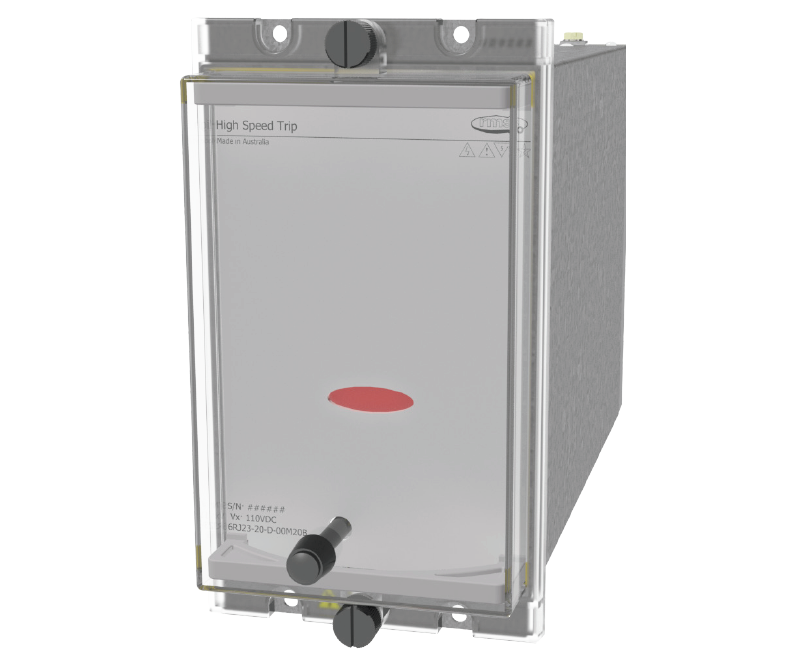

6RJ23-20 High Speed Tripping Relay

  • High speed operation
  • High burden
  • Hand reset contacts & flag
  • High security mechanical lock out
  • 20 contacts
  • Equivalent function to MVAJ23
  • 2HSM514 specification
6RJ Series High Speed Tripping Relays

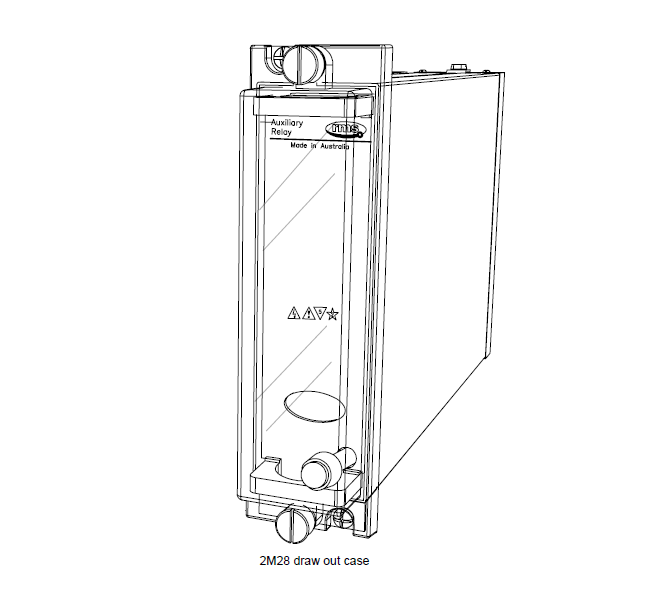

6RJ24 High Burden Electrical Reset Trip & Lockout …

  • High speed operation
  • High burden
  • Electrical reset contacts
  • Independent hand reset flag
  • 5 or 10 contacts
  • Equivalent function to MVAJ24
  • 2HSM516 specification
6RJ Series High Speed Tripping Relays

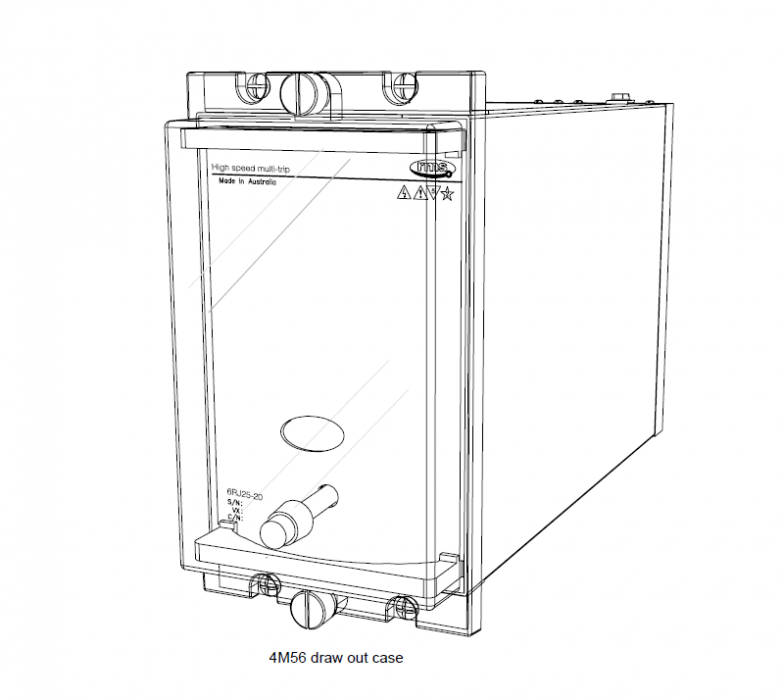

6RJ24-20 High Burden Electrical Reset Trip & Locko…

  • High speed operation
  • High burden
  • Electrical reset contacts
  • Independent hand reset flag
  • 20 contacts
  • Equivalent function to MVAJ24
  • 2HSM516 specification
6RJ Series High Speed Tripping Relays

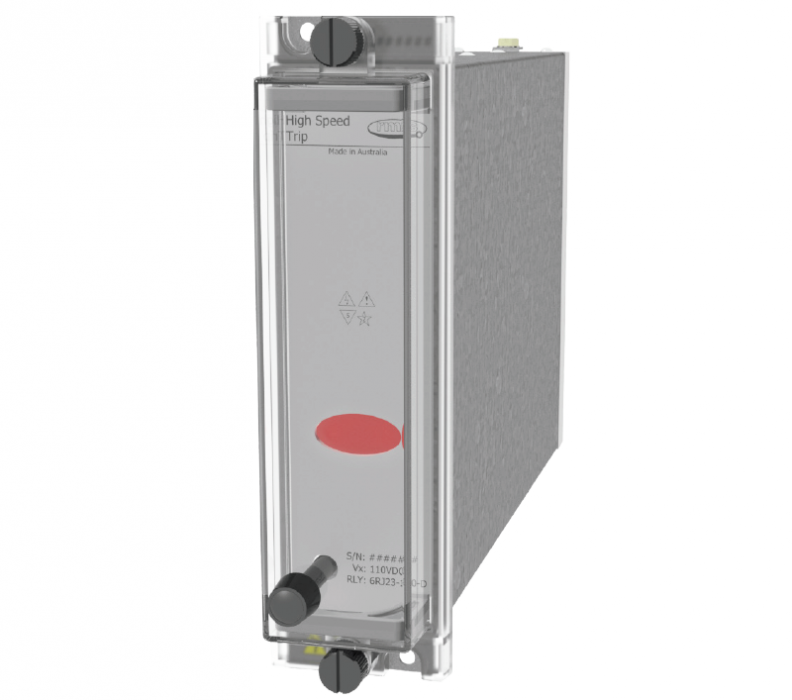

6RJ25 High Speed Tripping Relay

  • High speed operation
  • High burden
  • Hand & electrical reset contacts
  • Independent hand reset flag
  • 5 or 10 contacts
  • Equivalent function to MVAJ25
  • 2HSM519 specification
6RJ Series High Speed Tripping Relays

6RJ25-20 High Speed Tripping Relay

  • High speed operation
  • High burden
  • Hand & electrical reset contacts
  • Independent hand reset flag
  • 20 contacts
  • Equivalent function to MVAJ25
  • 2HSM519 specification



6RJ Series High Speed Tripping Relays

6RJ34-10 Bistable Control Relay

  • Meets NGTS 2.19.1999
  • Electrical set and reset contacts and flag
  • 10 contact version
  • Electrical reset inhibit function
  • Alternative to MVAJ34 and TR431 relays
6RJ Series High Speed Tripping Relays

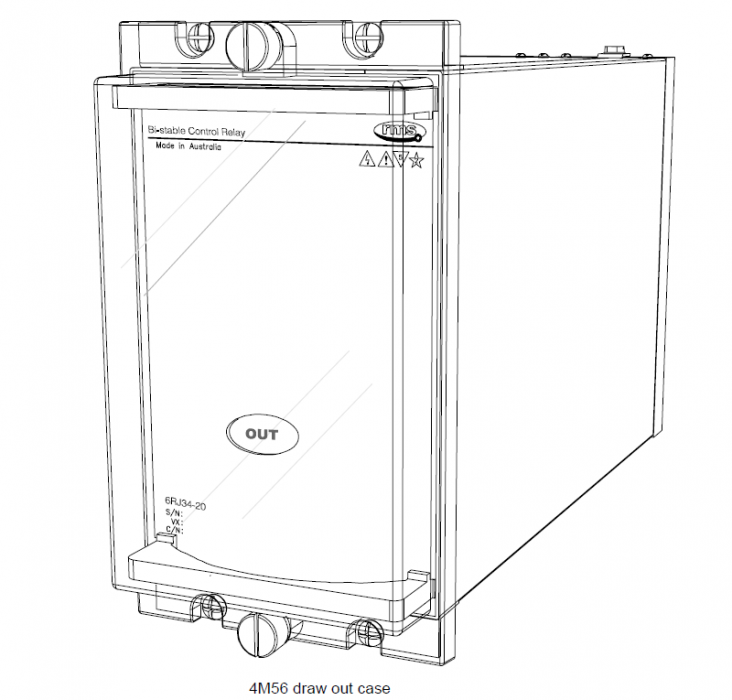

6RJ34-20 Bistable Control Relay

  • Meets NGTS 2.19.1999
  • Electrical set and reset contacts and flag
  • 20 contact version
  • Electrical reset inhibit function
  • Alternative to MVAJ34 and TR431 relays
