Vergrendelingsrelais

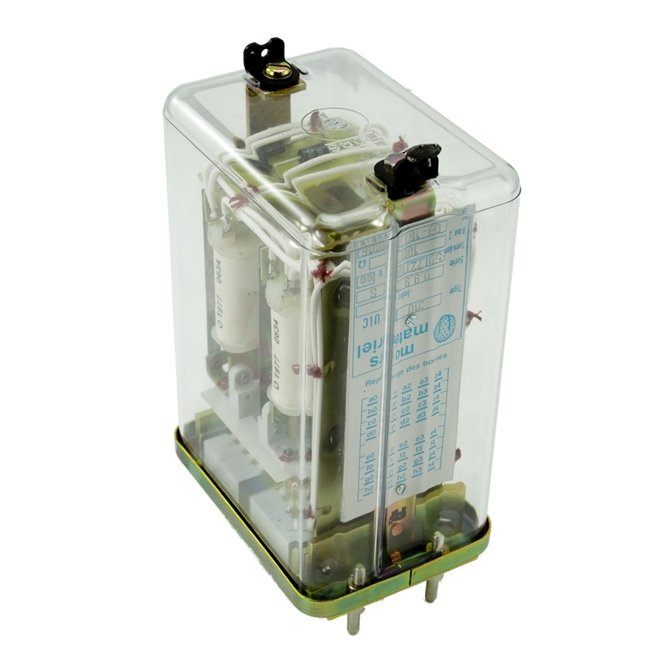

310 relay - Latching, safety critical, 18 contacts

  • Latching relay using 2 separate coils and magnetic rocker mechanism
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • 18 double break contacts in all N/O and N/C combinations
  • Weld no transfer safety contacts standard
  • Optional gold contacts
  • Optional gold and silver contacts
  • Contact life (mechanical) of 100 million cycles
  • -40 °C...+80 °C operating temperature
Vergrendelingsrelais

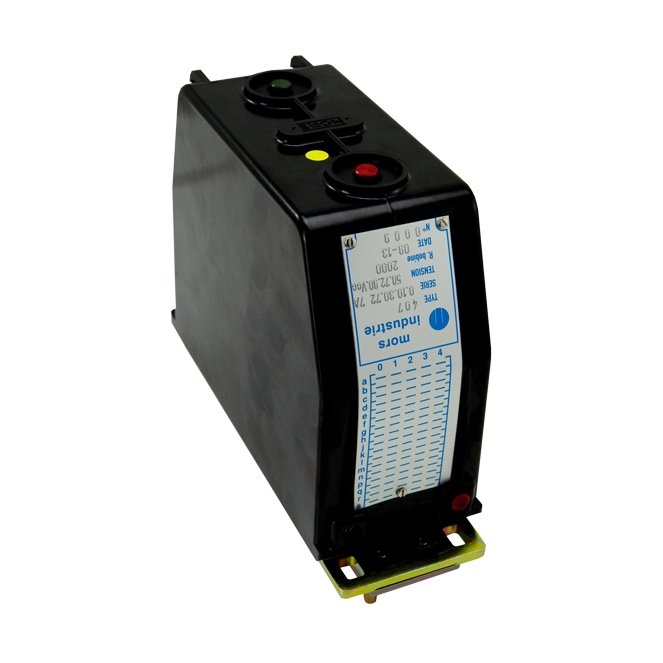

407 relay - Latching, safety critical, 40 contacts

  • Latching relay using 2 separate coils and magnetic rocker mechanism
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • 40 double break contacts in all N/O and N/C combinations
  • Weld-no-transfer safety contacts standard
  • Positive mechanical keying of relay to socket is done during manufacturing
Vergrendelingsrelais

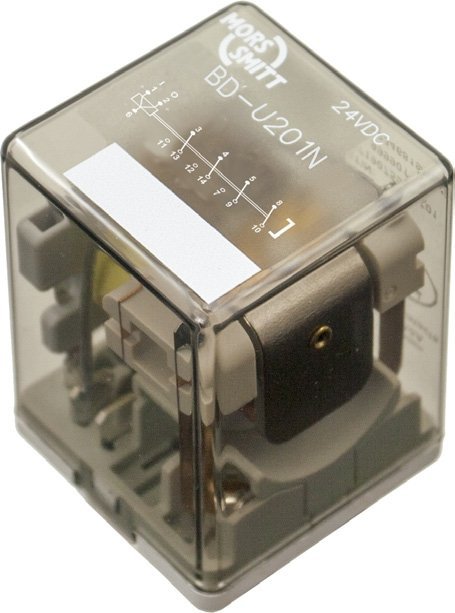

BD-U200 relay - Latching, plug-in 4 pole

  • Latching (bistable) relay
  • Compact plug-in design
  • 2 combined coils
  • 3 C/O contacts and 1 N/C contact
  • Magnetic arc blow-out
  • Flat, square silver plated relay pins for excellent socket connection
  • Wide range of sockets
  • Integrated snap lock
  • Transparent cover
  • High DC breaking capacity
  • Optional positive mechanical keying relay to socket
  • Flexibility by many options
Vergrendelingsrelais

KCD-U200 relay - Latching , 2 pole

  • Latching (bistable) relay
  • Compact plug-in design
  • 2 C/O contacts
  • 2 galvanic isolated coils
  • Clear position indicator (optional)
  • Weld no transfer contacts
  • Flat, square and silver plated relay pins for excellent socket connection
  • Wide range sockets
  • Integrated snap lock
  • Transparent cover
  • Optional positive mechanical keying relay to socket
  • Flexibility by many options
Vergrendelingsrelais

KCS-U200 relay - Latching , 2 pole

  • Latching (bistable) relay
  • Compact design
  • 2 C/O contacts
  • 2 galvanic isolated coils
  • Weld-no-transfer contacts
  • Flash barrier
  • 2.8 x 0.8 faston connections
  • Transparent cover
Vergrendelingsrelais

KDN-U200 relay - Latching, 8 pole

  • Latching (bistable) relay
  • Compact plug-in design
  • 8 C/O contacts
  • 2 galvanic isolated coils
  • Clear position indicator
  • Magnetic arc blow-out
  • Flat, square and silver plated relay pins for excellent socket connection
  • Wide range sockets
  • 2 integrated snap locks
  • Transparent cover
  • High DC breaking capacity
  • Optional positive mechanical keying relay to socket
  • Flexibility by many options
Vergrendelingsrelais

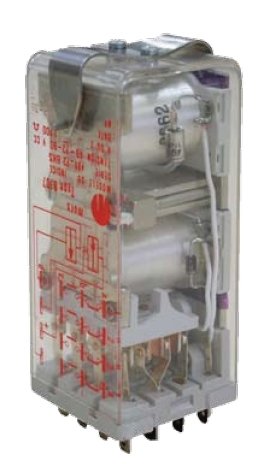

SB relay - Latching, 4/3 contacts

  • Latching relay using 2 separate coils and magnetic rocker mechanism
  • Two types available with 4 C/O (type 400) or 3 C/O (type 300) contacts
  • All contacts are double make - double break contacts (form Z), 8 A
  • Plug-in design with secure locking
  • feature for maximum ease of maintenance
  • Optional Weld no transfer contacts
  • Contact life (mechanical) of 100 million cycles
  • -40°C...+80 °C operating temperature
Vergrendelingsrelais

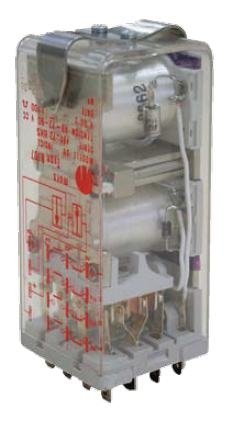

SBG relay - Latching, 4/3 gold contacts

  • Latching relay using 2 separate coils and magnetic rocker mechanism
  • Two types available with 4 C/O (type 400) or 3 C/O (type 300) contacts, gold plated on silver
  • All contacts are double make - double break contacts (form Z), 8 A
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • Optional Weld no transfer contacts
  • Contact life (mechanical) of 100 million cycles
  • -40°C...+80 °C operating temperature
Vergrendelingsrelais

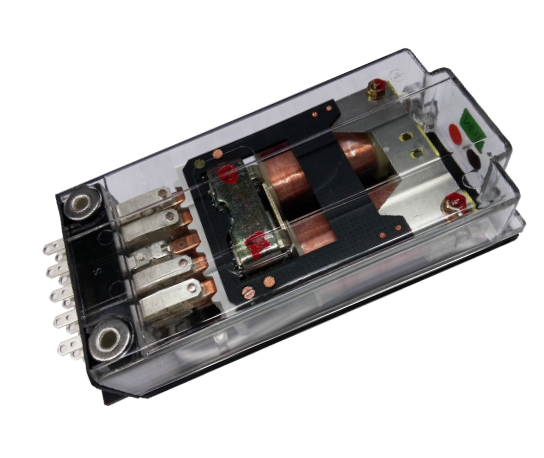

SC relay - Latching, 8 contacts

  • Latching relay using 2 separate coils and magnetic rocker mechanism
  • Double break in all N/O and N/C combinations
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • Weld no transfer safety contacts standard
  • Contact life (mechanical) of 50 million cycles
  • -40°C...+80 °C operating temperature
Vergrendelingsrelais

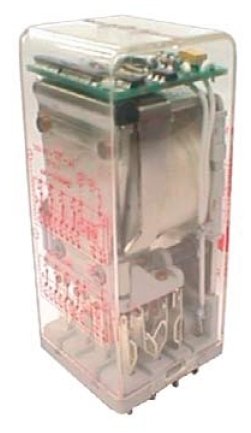

TFBBU 400 relay - Flip flop, 4 contacts

  • Delay flip flop relay
  • Transient pull-in mode or drop-out mode programmable by dip switch
  • Status LED indicator
  • Plug-in design with secure locking feature for maximum ease of maintenance
  • 4 double make / double break C/O contacts (form Z), 12 A
  • Weld no transfer contacts standard
  • Contact life (mechanical) of 100 million cycles
  • -40 °C...+85 °C operating temperature
