Vlamboog detectie systemen


Vlamboog detectie systemen

Vlamboog bescherming voor snelle detectie van vlambogen op conductors, schakelapparatuur en bijbehorende kabeldozen.


Filter
Vlamboog detectie systemen

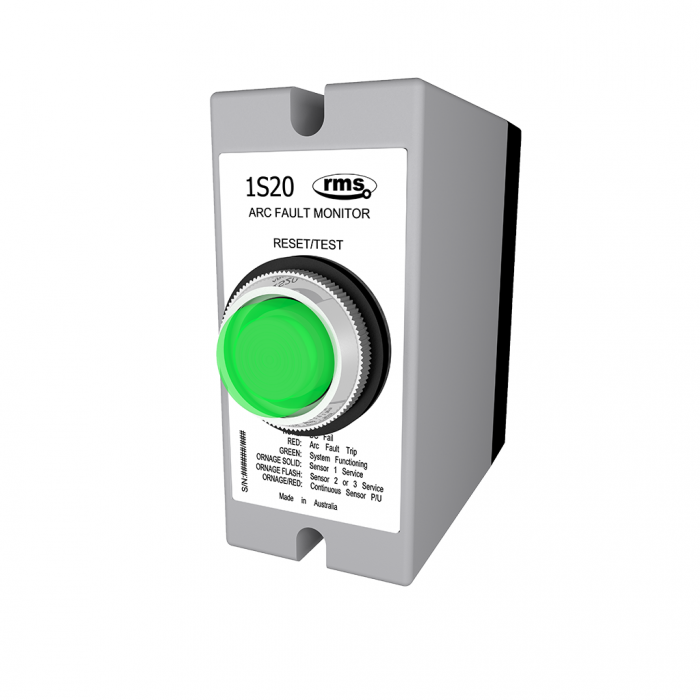

1S20 Arc Flash Monitor – 3 point sensors / 2…

  • Simple panel mounting for retrofit applications
  • One, two or three independent arc sensor inputs
  • Two high speed tripping output contacts
  • Push button reset
  • Integrated self-supervision with fail alarm contact
Vlamboog detectie systemen

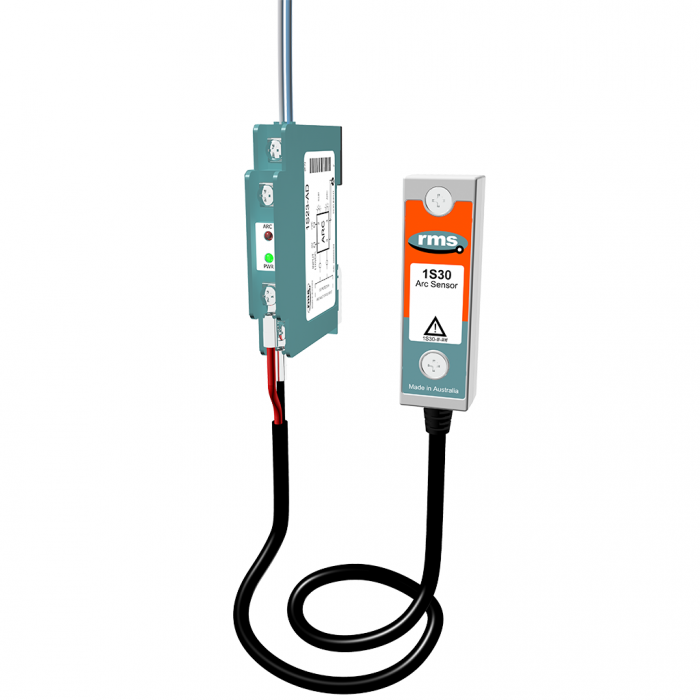

1S23 Arc Flash Module – 2 point sensors / 1 …

  • Simple panel mounting for retrofit applications
  • One, two or three independent arc sensor inputs
  • Two high speed tripping output contacts
  • Push button reset
  • Integrated self-supervision with fail alarm contact
Vlamboog detectie systemen

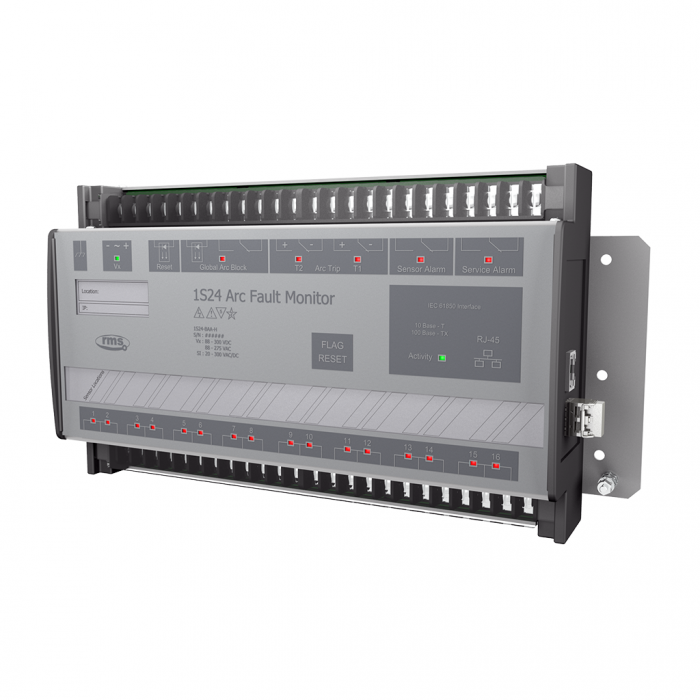

1S24 Arc Flash Monitor – 16 point or 12 poin…

  • Up to 16 arc fault sensors
  • Up to 16 independent arc fault SARC logic nodes
  • Arc fault signaling via Ethernet IEC61850 GOOSE messaging
  • 10Base-T / 100Base-TX port
  • Optional 100Base-FX port
  • Trip indication LED for each arc fault sensor
  • Continuous arc sensor supervision with sensor fail LED for each zone
  • Non volatile memory ensures last recorded alarm states are restored on power up
Vlamboog detectie systemen

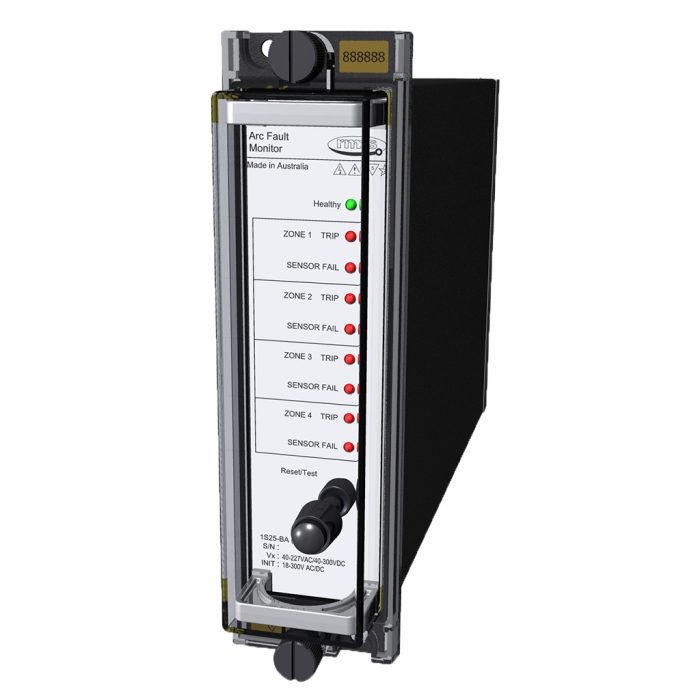

1S25 Arc Flash Monitor – 8 point sensors / 4…

  • Up to 16 arc fault sensors
  • Up to 16 independent arc fault SARC logic nodes
  • Arc fault signaling via Ethernet IEC61850 GOOSE messaging
  • 10Base-T / 100Base-TX port
  • Optional 100Base-FX port
  • Trip indication LED for each arc fault sensor
  • Continuous arc sensor supervision with sensor fail LED for each zone
  • Non volatile memory ensures last recorded alarm states are restored on power up
Vlamboog detectie systemen

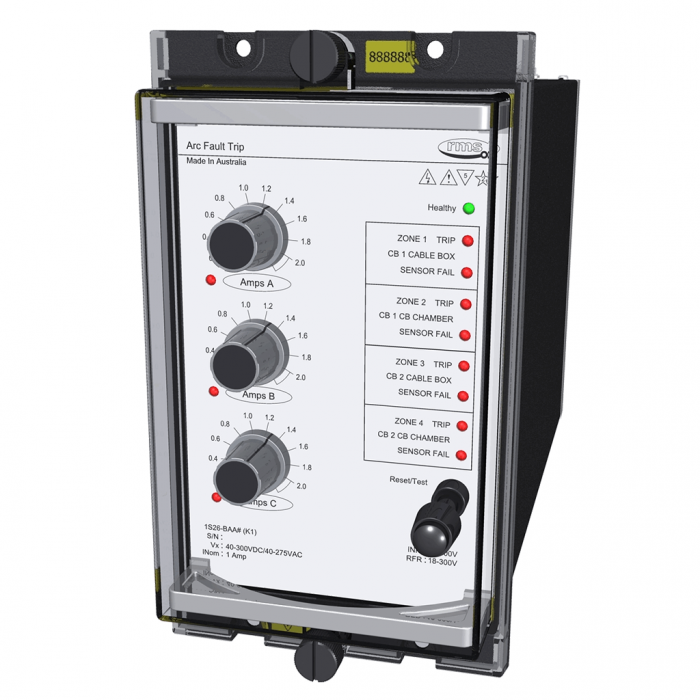

1S26 Arc Flash Monitor – 8 point sensors / 4…

  • Up to 16 arc fault sensors
  • Up to 16 independent arc fault SARC logic nodes
  • Arc fault signaling via Ethernet IEC61850 GOOSE messaging
  • 10Base-T / 100Base-TX port
  • Optional 100Base-FX port
  • Trip indication LED for each arc fault sensor
  • Continuous arc sensor supervision with sensor fail LED for each zone
  • Non volatile memory ensures last recorded alarm states are restored on power up
Vlamboog detectie systemen

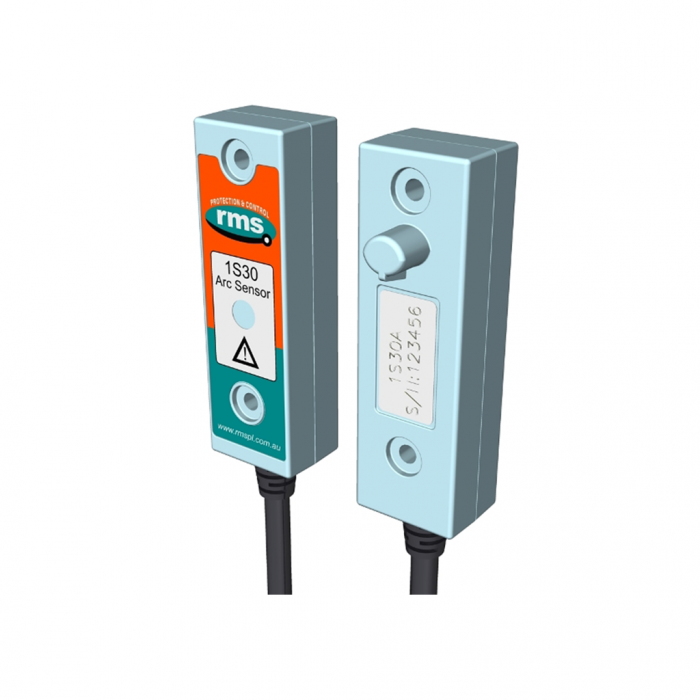

1S30 Optical Arc Fault Point Sensor

  • Up to 16 arc fault sensors
  • Up to 16 independent arc fault SARC logic nodes
  • Arc fault signaling via Ethernet IEC61850 GOOSE messaging
  • 10Base-T / 100Base-TX port
  • Optional 100Base-FX port
  • Trip indication LED for each arc fault sensor
  • Continuous arc sensor supervision with sensor fail LED for each zone
  • Non volatile memory ensures last recorded alarm states are restored on power up
Vlamboog detectie systemen

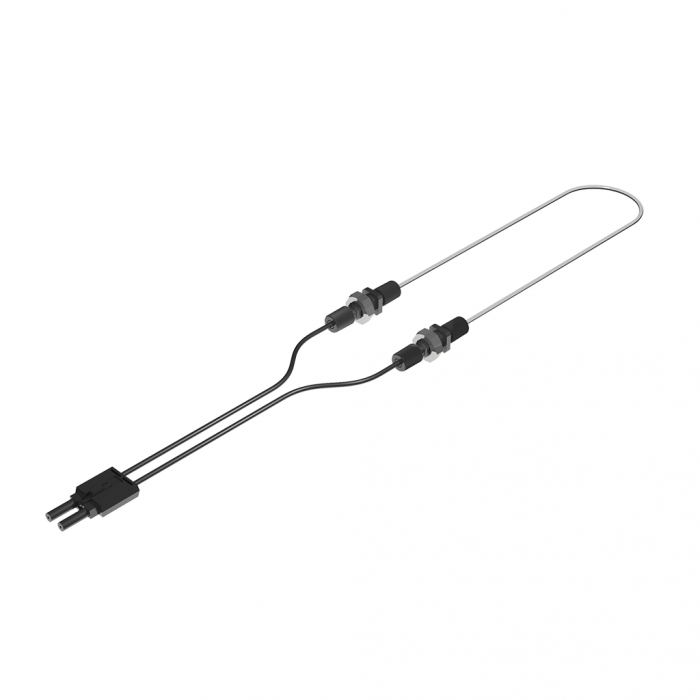

1S40 Optical Arc Fault Linear Sensor (pre-release)

  • Linear sensor for wide of arc protection coverage
  • Optional sensor fibre length
  • Optional link fibre length
  • Loop topology allows sensor supervision
  • Robust and durable 2mm plastic optical fibre
  • Suits RMS 1S24 and 1S27 arc fault monitors
  • Sensor length up to 35 meters
  • Sensor link adds another 40 meters in length
  • Robust and durable 2mm plastic optical fibre
  • No special tools required for installation
  • Supplied with 2x fibre couplers
  • Supplied with fibre cutter
Vlamboog detectie systemen

Delta 1S27 Arc Flash Monitor – 4 point + 1 l…

  • Linear sensor for wide of arc protection coverage
  • Optional sensor fibre length
  • Optional link fibre length
  • Loop topology allows sensor supervision
  • Robust and durable 2mm plastic optical fibre
  • Suits RMS 1S24 and 1S27 arc fault monitors
  • Sensor length up to 35 meters
  • Sensor link adds another 40 meters in length
  • Robust and durable 2mm plastic optical fibre
  • No special tools required for installation
  • Supplied with 2x fibre couplers
  • Supplied with fibre cutter
