Flush & PCB mounting sockets

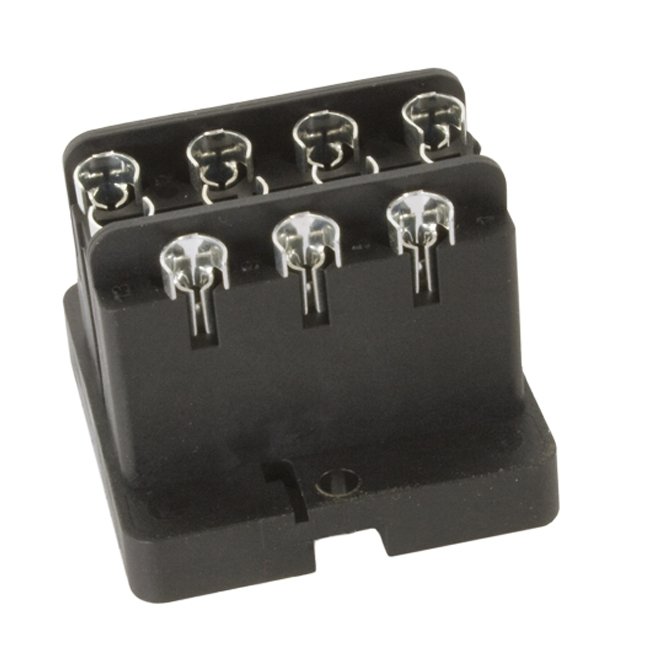

V26 relais voet

• Relais voet voor D-Serie vermogens relais
• Paneel montage
• Krimp klemmen

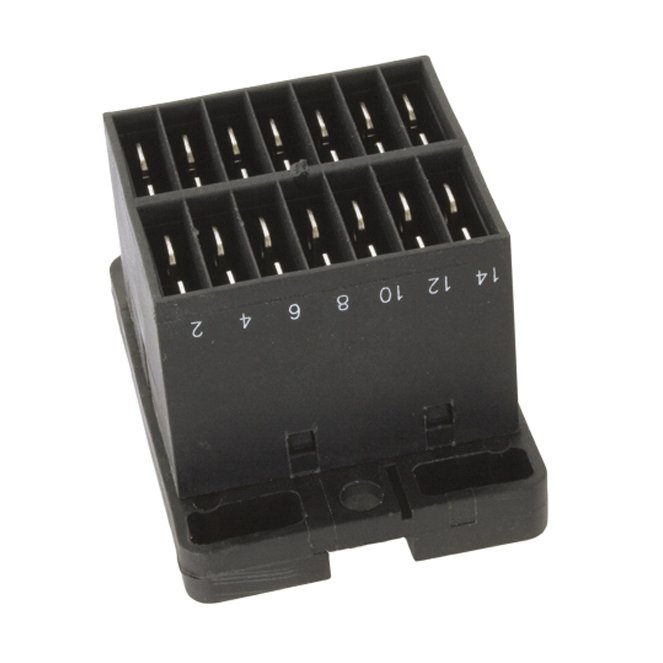

V31 relais voet

Relais voet voor D-serie vermogens relais

V33 socket – push-in terminal, panel mount

• Panel / flush mount
• Very compact solution
• Sturdy push-in terminals
• Solid and stranded wires with ferrules can be inserted easily without using a tool
• Stranded wires without ferrules can be inserted with a flatbladed screwdriver
• Twin connection per relay contact
• Large wires up to 3.3 mm² (AWG 12)
• High density matrix of relay/sockets possible, horizontal and vertical stacked
• Suitable for all railway and industry D- & D-U relay series
• Easy & quick installation (up to 75% reduction of wiring time)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

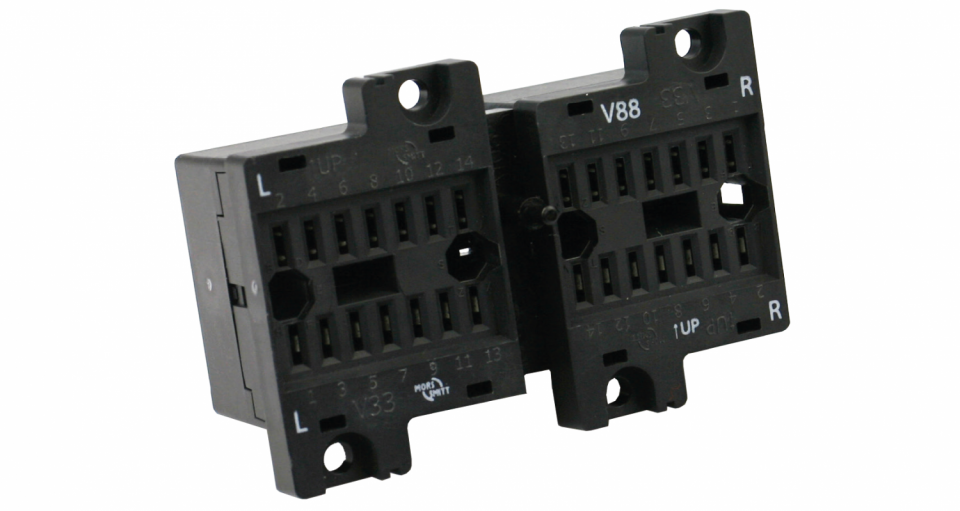

V88 socket – push-in terminal, panel mount 8 pole

• Panel / flush mount
• Very compact solution
• Sturdy push-in terminals
• Solid and stranded wires with ferrules can be inserted easily without using a tool
• Stranded wires without ferrules can be inserted with a flat-bladed screwdriver
• Twin connection per relay contact
• Large wires up to 3.3 mm² (AWG 12)
• High density matrix of relay/sockets possible, horizontal and vertical stacked
• Suitable for all railway and industry D8- & KDN relays
• Easy & quick installation (up to 75% reduction of wiring time)
• Positive mechanical keying
• Trifurcated female receiver for tight grip relay pin
• Clear terminal ID

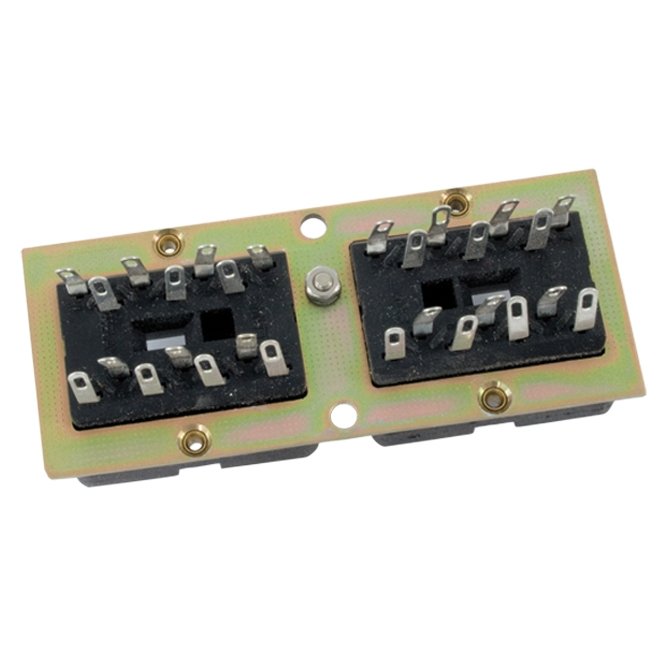

V96 relais voet

• Relaisvoet voor D8 en KDN vermogens relais
• Paneel montage
• Soldeer contacten
