Niet meer leverbare spoorweg relaisvoeten

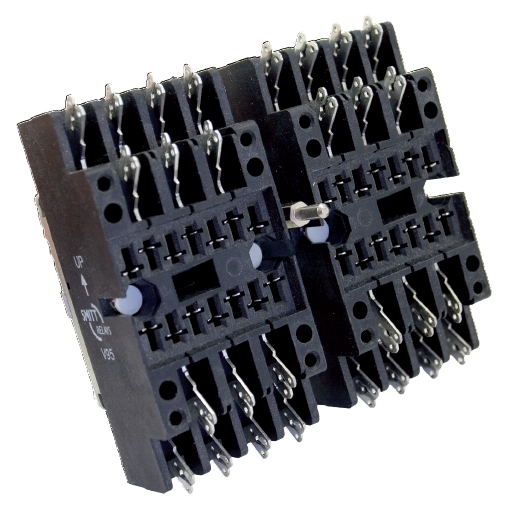

V95 socket - Faston terminal, rail mount, 8 pole

Obsolete
Informatie

This product is no longer available. The replacement sockets are the V93 and the V99.

Click here to go to the product page of the V93.

Click here to go to the product page of the V99.

Description

The V95 is a 35 mm rail mount relay socket. The V95 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Clear UP arrow for correct mounting.


Application

The V95 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.

Suitable for all D8 and KDN relay series.


Features

  • 35 mm rail mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D8 and KDN relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID

Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • IEC 60715 Dimensions of low voltage switchgear and controlgear
  • NF F 62-002 On-off contact relays and fixed connections
