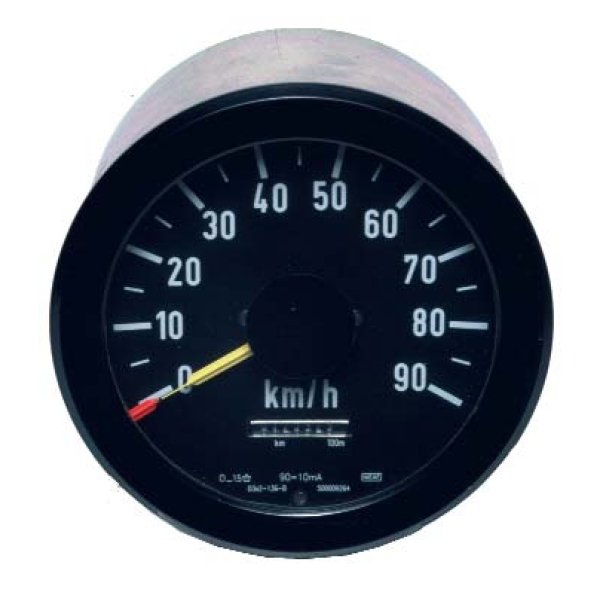

D3a2-136-B railway panel indicator

Round panelmeter for railway applications, double pointer

General specifications

Accuracy
1.5 % F.S.D. addirional 0.75 % / 10 °C

Operating temperature
-25 °C...+70 °C

Humidity
at 40 °C max. 95 %

Protection
IP54
rear IP50 (terminals IP00)

Vibrations
5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155)

Shock
acc. EN 61373

Test voltage
2 kV

Illumination
LEDS, any voltage between 24 and 110 VAC/VDC

Scale and pointer
Black scale, white pointer and figures

Terminals
Movement: M5, illumination: faston 6.3 x 0.8
Signal Leds: screw terminals
km counter : screw terminals

Glass
Low reflection

Panel mounting
With two brackets, panelcutout ∅130+1

International Standards
IEC 571
EN 60051
EN 50155
EN 50121
EN 61373

Movement signal

0...20 mA
4...20 mA
0...2.5 mA
0...10 V
other inputs on request zero left or middle

Codes

xL : Signal Led's (on request) x = number of leds
W : White scale
T : reduced size 89 to 61

xL : Signal Led's (on request) x = number of leds
W : White scale
T : reduced size 89 to 61

Options

White scale with black pointer and printing

Pointers yellow, white or red

Brand label on scale

Red-line marking(s) on the scale

Built in km-counter (not resetable)

Reduced size from 89 mm to 61 mm (on request)
