Paneelmeters

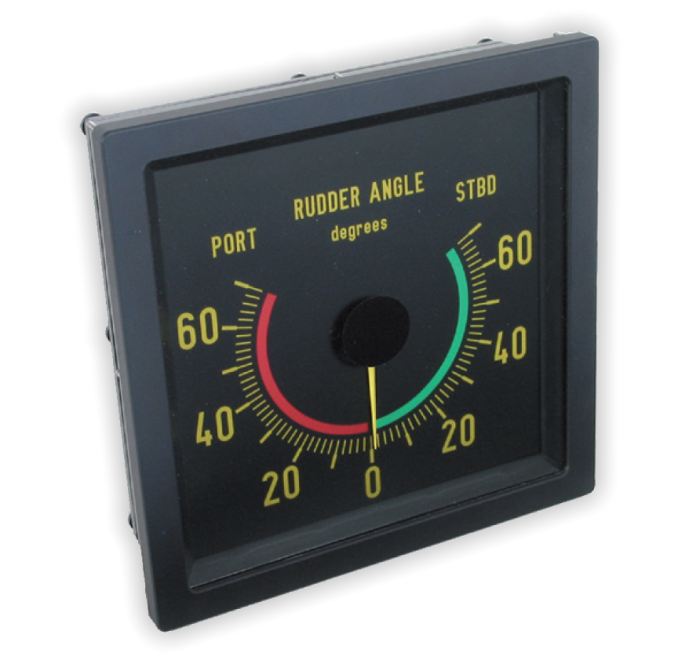

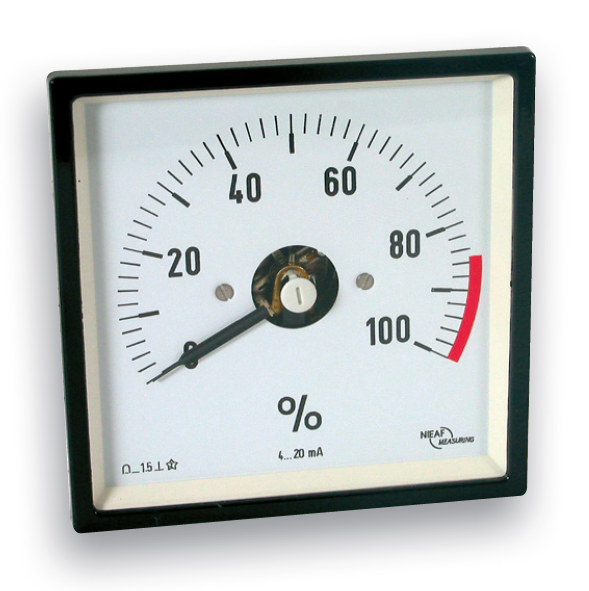

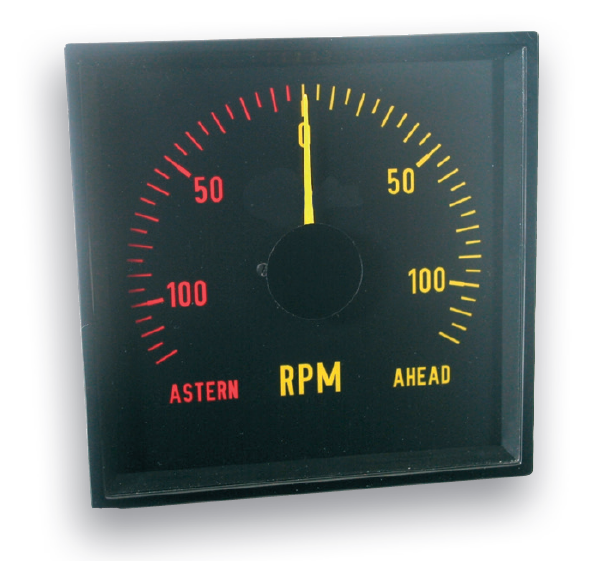

D3v Series maritime panel indicators

Informatie
Indicatoren voor maritieme toepassingen, wijzer
rotatie max. 240o

Models Dimensions Weight
D3v48S 48 x 48 mm / 52 mm 190 g
D3v72S 72 x 72 mm / 60 mm 310 g
D3v96S 96 x 96 mm / 60 mm 400 g
D3v144S 144 x 144 mm / 60 mm 530 g
D3v192S 192 x 192 mm / 60 mm 600 g

Illumination options
Illuminated pointer 24 VDC
Illuminated scale by LED’s 24 VDC

Input options Load
0…10 V 10 kΩ
0…12 V 12 kΩ
10…0…10 V 20 kΩ
12…0…12 V 24 kΩ
0…20 mA / 4…20 mA < 30 Ω
1…0…1 mA < 30 Ω
10…0…10 mA < 30 Ω
20…0…20 mA < 30 Ω
Other voltages and currents on request

Scale options
Background black / white
Inscription black / white / yellow
Coloured marks and bands On customer request
Company logo On customer request
Pointer options
Deflection 240 degrees
Colour black / white / yellow
Other pointer colours on request

Temperature ranges
Operation -25…0…70 °C
Storage -40…0…80 °C
Influence on accuracy 0.5 % / 10 °C

Vibration test
3…13.2 Hz 2 mm
13.2…100 Hz 0.7 g

General
Glass Iow-reflecting glass
Protection class IP54 (standard) / IP66 (optional)
Accuracy Class 1.5
Mounting In all positions mountable
Standards
DIN 43700
DIN 43701
DIN 43718
DIN 43802
EN 60051

Compliancy
EN 61554
ISO 20673:2007
ISO 22554:2007
ISO22555:2007
EN 60051
EN 60945:2002
Lloyds approval TA

MED directives:
- Speed A.1/4.7
- Rudder A.1/4.20
- RPM A.1/4.21
- Pitch A.1/4.22
