Paneelmeters (DISCONTINUED)

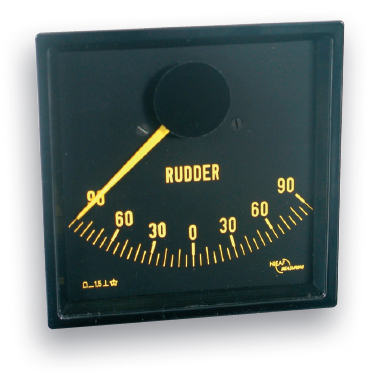

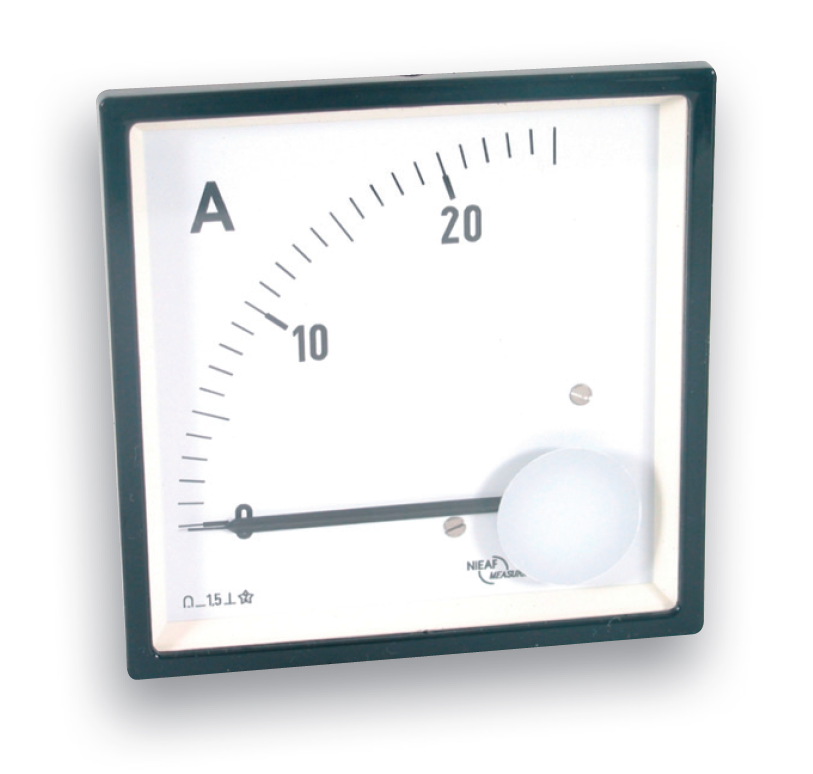

Dv Series maritime panel indicators (DISCONTINUED)
Informatie
Paneelmeters voor maritieme toepassingen, wijzer
rotatie max. 90o
rotatie max. 90o
| Modellen | Afmetingen | Gewicht |
| Dv48S | 48 x 48 mm / 52 mm | 100 g |
| Dv72S | 72 x 72 mm / 60 mm | 210 g |
| Dv96S | 96 x 96 mm / 60 mm | 270 g |
| Dv144S | 144 x 144 mm / 60 mm | 350 g |
| Verlichtingsopties | |
| Illuminated pointer | 24 VDC |
| Illuminated scale by LED’s | 24 VDC |
| Invoeropties | Belasting |
| 0…10 V | 10 kΩ |
| 0…12 V | 12 kΩ |
| 10…0…10 V | 20 kΩ |
| 12…0…12 V | 24 kΩ |
| 0…20 mA / 4…20 mA | < 30 Ω |
| 1…0…1 mA | < 30 Ω |
| 10…0…10 mA | < 30 Ω |
| 20…0…20 mA | < 30 Ω |
| Other voltages and currents on request | |
| Schaalopties | |
| Background | black / white |
| Inscription | black / white / yellow |
| Coloured marks and bands | On customer request |
| Company logo | On customer request |
| Aanwijzeropties | |
| Deflection | 90 degrees |
| Colour | black / white / yellow |
| Other pointer colours on request |
| Temperatururbereiken | |
| In bedrijf | -25…0…70 °C |
| Tijdens opslag | -40…0…80 °C |
| Invloed op bereik | 0.5 % / 10 °C |
| Triltest | |
| 3…13.2 Hz | 2 mm |
| 13.2…100 Hz | 0.7 g |
| Algemeen | |
| Glass | Iow-reflecting glass |
| Protection class | IP54 (standard) / IP66 (optional) |
| Accuracy | Class 1.5 |
| Montage | In alle posities te monteren |
|
Normen
DIN 43700
DIN 43701 DIN 43718 DIN 43802 EN 60051 Compliancy EN 61554
ISO 20673:2007
ISO 22554:2007 ISO22555:2007 EN 60051 EN 60945:2002 |
Lloyds approval TA
MED directives: - Speed A.1/4.7 - Rudder A.1/4.20 - RPM A.1/4.21 - Pitch A.1/4.22 |
