Direct schakelend relais

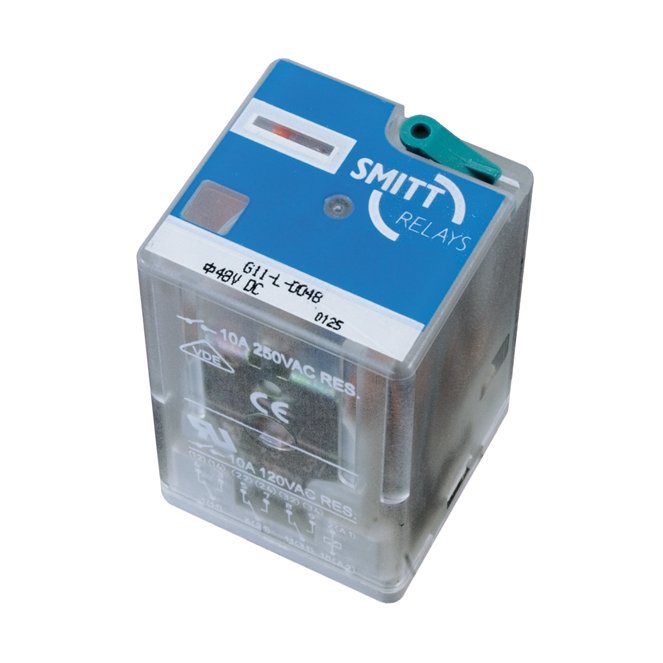

G11 serie, universeel insteekrelais

Diverse modellen
Informatie

Kenmerken van de G11:

Universeel insteekrelais voor algemene toepassingen, schakelen van AC & DC spanningen en ohmse belastingen.
  • Hulprelais
  • Insteekrelais

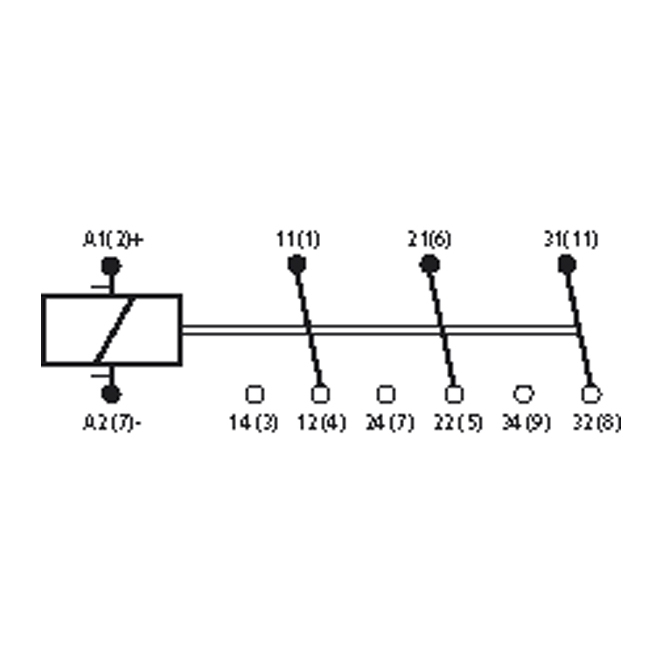

  • 3 wisselcontacten
  • AC of DC spoel
  • Bluskamers
  • Optionele LED indicator
  • Standaard mechanische indicator
  • Cadmium vrije contacten

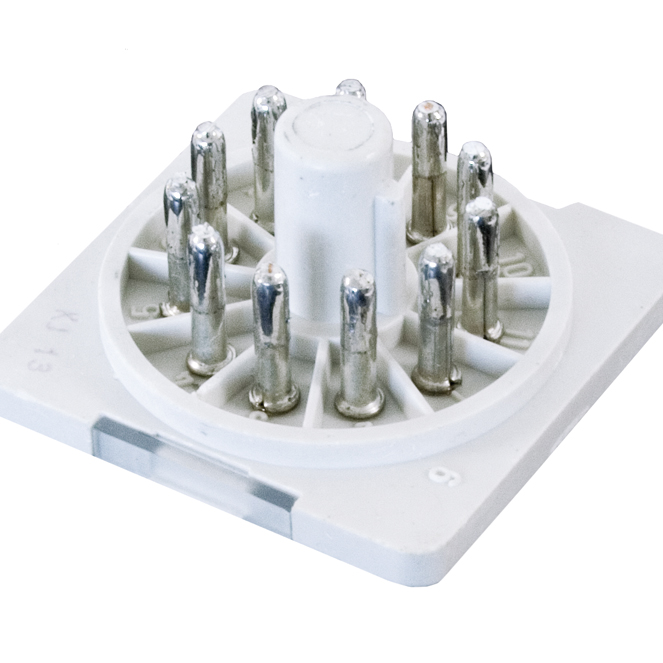

  • Universele pinning (11 pin)
  • Handmatige test knop

G11 serie univerele relais, standaard types;

  • G11-D012 12 VDC
  • G11-D024 24 VDC
  • G11-D048 48 VDC
  • G11-D110 110 VDC
  • G11-D120 125 VDC
  • G11-D220 220 VDC
  • G11-A012 12 VAC 50/60Hz
  • G11-A024 24 VAC 50/60Hz
  • G11-A048 48 VAC 50/60Hz
  • G11-A110 110 VAC 50/60Hz
  • G11-A230 230 VAC 50/60Hz

G11-L serie universele relais + LED indicator, standaard types;

  • G11-L - D012 12 VDC
  • G11-L - D024 24 VDC
  • G11-L - D048 48 VDC
  • G11-L - D110 110 VDC
  • G11-L - D220 220 VDC
  • G11-L - A012 12 VAC, 50/60Hz
  • G11-L - A024 24 VAC, 50/60Hz
  • G11-L - A048 48 VAC, 50/60Hz
  • G11-L - A110 110 VAC, 50/60Hz
  • G11-L - A230 230 VAC, 50/60Hz
